Meet the New Phase, Powered by Avinox
The new Phase features a brand new and improved frame with an Avinox drive system and 800Wh integrated battery, offering more range than ever before.
The Phase is the result of 10 years riding and developing E-bikes. Culminating in what is our finest work to date!

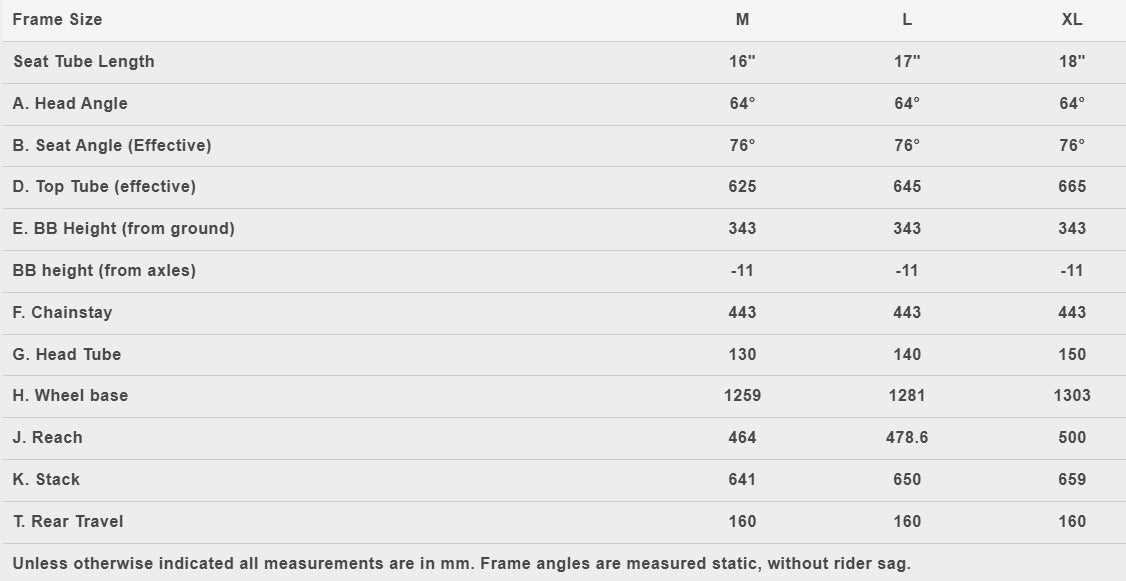

The Phase wields a 64° head angle, 76° seat angle, reduced offset fork, refined reach measurements and a trunnion mounted shock, but it also incorporates Avinox's (DJI) 800Wh battery technology. This all culminates in geometry you can depend on, composure on the most challenging of terrain, better small bump compliance and a bike that will keep going lap after lap.
We even sweat the small details so you don't have to, a replaceable aluminium bash guard protects your investment, UDH dropouts make your drivetrain future proof and a 5 year frame warranty with limited lifetime crash replacement policy means you never have to worry.
With MX wheels, 160mm travel front and rear this bike is prepared to go wherever you are willing to take it.
Features:
- Hand-built Orange Aluminium Frameset, built in the UK
- Fox 38 Factory Grip X2 160mm Travel Fork
- Fox Float X2 Factory Rear Shock
- Sram Eagle 70/90 12spd Drivetrain
- Sram Maven Silver Hydraulic Disc Brakes
- Stans Flow MK4 Tubeless Ready Rims on Hope Pro 5 Hubs
- DJI Avinox M2S Drive Unit
- DJI Avinox 800Wh Integrated Batter
| Product Code | FS26AVIF-L-FIOR |
|---|---|
| Brand | Orange |
| Gender | Unisex |
| Frame | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. |
| Fork | Fox 38 Factory Grip X2 29x160 |
| Rear Shock | Fox Float X2 Factory 205x65 |
| Shifters | Sram Eagle 90 Transmission |
| Derailleur (Rear) | Sram Eagle 90 Transmission |
| Brakes | Sram Maven Silver |
| Crankset | Sram Eagle 90 Transmission 165mm 34t |
| Cassette | Sram 1270 Eagle Transmission 10-52t |
| Chain | Sram Eagle 70 Transmission |
| Hub Front | Hope Pro 5 |
| Hub Rear | Hope Pro 5 |
| Rims | Stans Flow Mk 4 |
| Tyres | Continental Kryptotal Soft 2.4 |
| Handlebar | Burgtec Ridewide 800 x 30mm |
| Stem | Burgtec Enduro 42.5mm |
| Headset | Cane Creek ZS49/ZS56 |
| Saddle | SDG Strange Bel Air III |
| Seatpost | Fox Transfer Factory |
| Pedal | Pedals not included with this bike but can be purchased separately here |
| Wheel Size | 29 / 27.5 inch |
| Number of Gears | 12 |
| Remote System | BC100 controller LH |
| Motor | Avinox M2S motor 130Nm, max 150Nm (Boost) |
| Battery | Avinox 800Wh fixed battery 3.74Kg |
