Silent as a stalking mountain lion.
Calm in the face of wild terrain.
It multiplies your every input.
It amplifies the experience.
The Voltage is evolution, accelerated.
Ride the Voltage. See the Light.
Picture what you consider to be the perfect Trail bike, then stand back as that ceiling is shattered. The Voltage eRIDE sets its sights on further, higher and more. With 160mm/155mm of tunable, dreamy support, complemented by the silent assassin TQ-HPR50 drive unit, your wildest aspirations just moved a lot closer.
Imagine giving the world’s best trail bike a secret weapon. With the Voltage eRIDE, that’s just what we did. Designed for existing MTB enthusiasts who crave an agile, lightweight and capable trail bike with the addition of a compact and quiet motor, the all-new Voltage eRIDE overdelivers trail after trail... after trail.

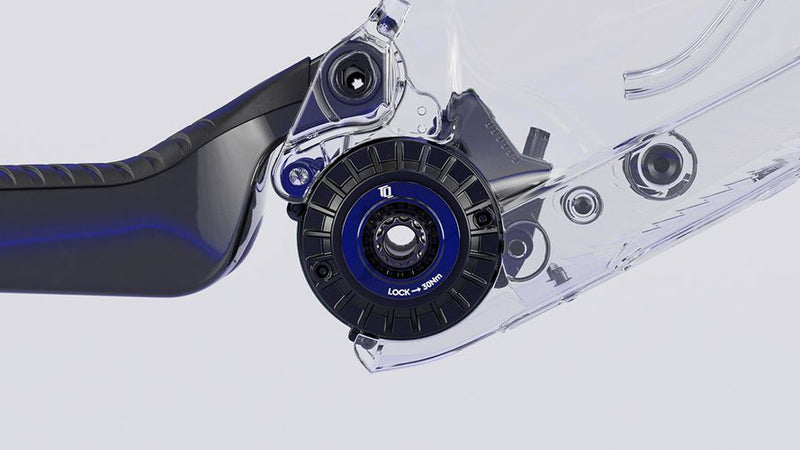

TQ-HPR50
The TQ-HPR50 drive unit is the beating heart of the Voltage eRIDE, with enough assistance to transform the way you look at the trails ahead.
360Wh of Fun
The 360WH battery housed in the downtube of the Voltage is your ticket to more. More new trails. More laps of your favorites. More fun.
Supplemental Range
Want to go even further? The Voltage eRIDE can be complemented by a 160Wh external range extender, giving you a total of 520Wh. Now there’s a recipe for adventure.
Lightweight
At 17.9kg for the SL model, the Voltage responds to your every input just like a regular trail bike; maneuvering and braking as you’re used to – but with some added oomph to keep you out there for longer.

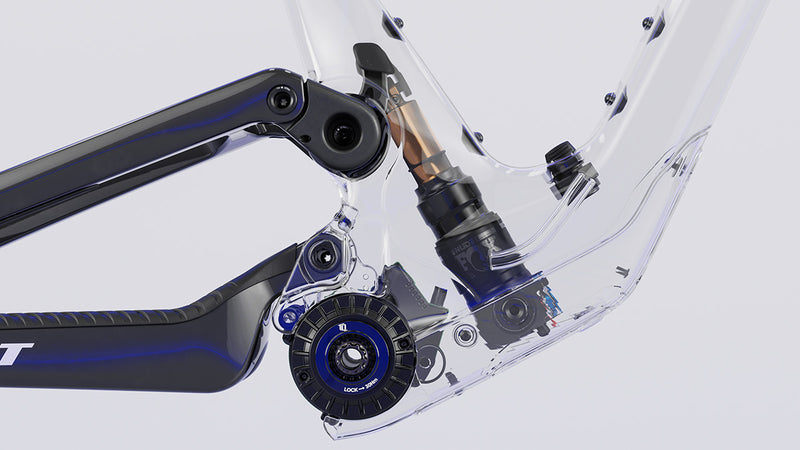

Cable Management
It’s no secret that there is a lot going on inside the modern eMTB, with dropper cable, drive unit and battery cables, and a rear shock discreetly tucked away inside the frame. We have developed a dropper cable channeling device and a shock sleeve that ensure these components are well placed, easy to manage and kept safely away from any moving parts. These neat solutions also result in clean and unobstructed access to the rear shock settings when working on the bike.
Features:
- Scott Voltage eRide HMF Carbon Frameset
- Marzocchi Z2 Air 150mm Fork
- Fox Float Custom 150mm Shock
- Shimano XT 12spd Drivetrain
- Sram DB8 4-Pot Hydraulic Brakes
- TQ HPR50 Drive Unit with 360Wh Battery
Product Code | 293296012 |
---|---|
Brand | Scott |
Gender | Unisex |
Frame | Carbon HMF Integrated Suspension Technology Virtual 4 Link kinematic / Adjustable head angle Syncros Cable Integration System TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline Range Extender Ready |
Fork | Marzocchi Z2 Air Rail 3 modes / 15x110mm QR axle / tapered steerer 44mm offset / Reb. Adj. / Lockout / 150mm travel |
Rear Shock | FOX Float Custom EVOL Performace Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 155mm / T185X55mm |
Shifters | Shimano Deore SL-M6100-IR / Rapidfire Plus I-spec EV clamp |
Derailleur (Rear) | Shimano XT RD-M8100 SGS Shadow Plus / 12 Speed |
Brakes | SRAM DB8 4 Piston Disc |
Crankset | FSA Alloy crankset / 175mm / 34T |
Cassette | Shimano CS-M6100 / 10-51 T |
Chain | Shimano CN-M6100 |
Hub Front | Formula CL-811 / 15x110mm |
Hub Rear | Formula CL-148M / 12x148mm |
Tyres | Maxxis Dissector / 29x2.6" / 60TPI Wire Bead EXO Dual |
Handlebar | Syncros Hixon 2.0 Alloy 6061 D.B. 12mm Rise / back sweep 8° / 780mm Syncros Endurance lock-on grips |
Stem | Syncros AM 2.0 Syncros Cable Integration System 4° rise / 6061 Alloy / 31.8mm / 1 1/8" |
Headset | Syncros - Acros Angle adjust & Cable Routing HS System Stainless / +-0.6° head angle adjustment ZS56/28.6 – ZS56/40 MTB |
Saddle | Syncros Tofino 2.0 Regular |
Seatpost | Syncros Duncan Dropper Post 1.5S / Travel Adjust / 31.6mm S size 140mm / M size 180mm / L & XL size 210mm |
Pedal | Pedals not included with this bike but can be purchased separately here |
Wheel Size | 29 inch |
Number of Gears | 12 |
Remote System | SCOTT TwinLoc 2 Technology Suspension & Dropper Remote 3 Suspension modes |
Motor | TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph |
Battery | TQ Internal 360Wh |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 5-7 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
