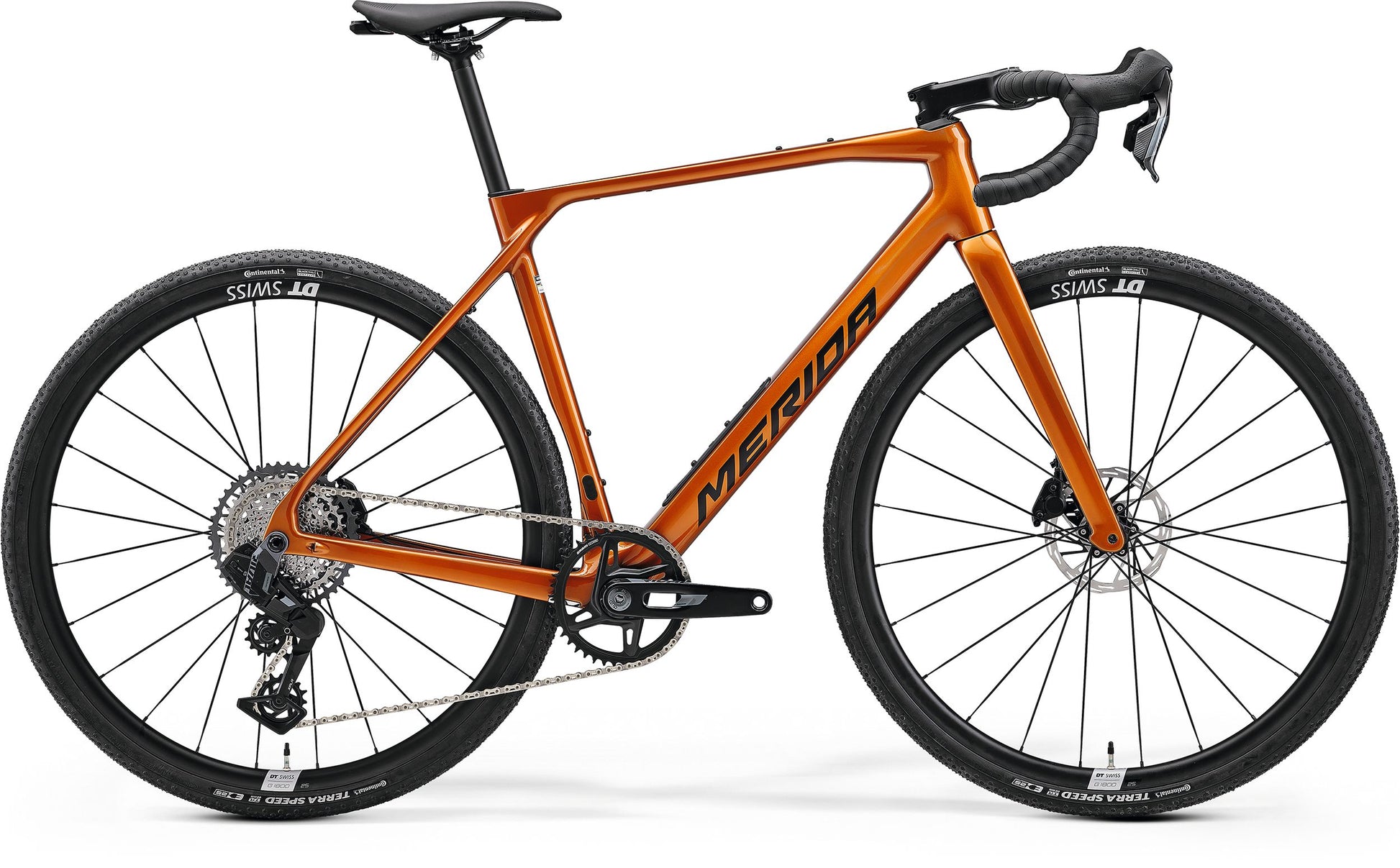

The 13-speed SRAM groupset and proven DT Swiss 1800 wheelset are perfectly combined with our lightweight CF4 carbon Mission frame to create the ideal gravel racing combination at a more budget-friendly price point. With a geometry between the road-biased Scultura Endurance and the off-road-focused Silex, the Mission offers sharp, responsive handling on and off the road without Compromising the control and confidence you need on more rugged gravel sections. The Mission 6000 is the perfect tool for gravel gran fondos or fast, rough roads.
Our new Mission truly embodies its ‘fast on any surface’ intentions. It's a gravel race bike that takes key geometry and frame elements from the Scultura Endurance and Silex and adds road racing DNA to deliver a fast and responsive ride on pretty much any surface.
From fast-paced gravel races to tarmac-based chaingang outings, the Mission delivers. Up to 40 mm tyre clearance offers scope for wider gravel racing tyres or large volume road tyres, and its low weight (Mission 10K is around 7.6 kg) makes it fly up the hills.
The Mission’s built-in storage compartment (G.U.T.) improves the accessibility and organisation of crucial mid-race nutrition and spares, further enhancing the efficiency when every second counts. The ability to seamlessly fit 1x or 2x drivetrains offers riders the flexibility to find their preferred set-up fo riding or racing.
Features:
- Merida CF4 Carbon Frameset
- Sram Rival XPLR 13spd Drivetrain
- Sram Rival XPLR Hydraulic Disc Brakes
- DT Swiss G1800 SPLINE Tubeless Ready Wheelset
| Product Code | R530 |
|---|---|
| Brand | Merida |
| Gender | Unisex |
| Frame | CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C |
| Fork | Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size |
| Shifters | SRAM Rival AXS |
| Derailleur (Rear) | SRAM Rival XPLR;AXS wireless; 1x13; T-Type |
| Brakes | SRAM Rival AXS XPLR |
| Crankset | SRAM Rival XPLR; 42 tooth chainset; material:Aluminium; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm |
| Cassette | SRAM Rival XPLR; 10-46 teeth; 13 speed |
| Chain | SRAM Rival; Flattop |
| Tyres | Continental Terra Speed ProTection; 40-622; TLR; foldable skin SL |
| Handlebar | Merida Expert GRII; material: aluminium; (XXS-S) - 380mm wide, (M-L) - 400mm wide, XL - 420mm wide |
| Stem | Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm |
| Headset | Acros ICR Merida External neck w/diecast splitring |
| Saddle | Merida Comp SL; 25% recycled material; V-mount |
| Seatpost | Merida Expert SL; 27.2mm diameter; in-line; material: carbon |
| Pedal | Pedals not included with this bike but can be purchased separately here |
| Wheel Size | 700c |
| Number of Gears | 13 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 3-5 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
