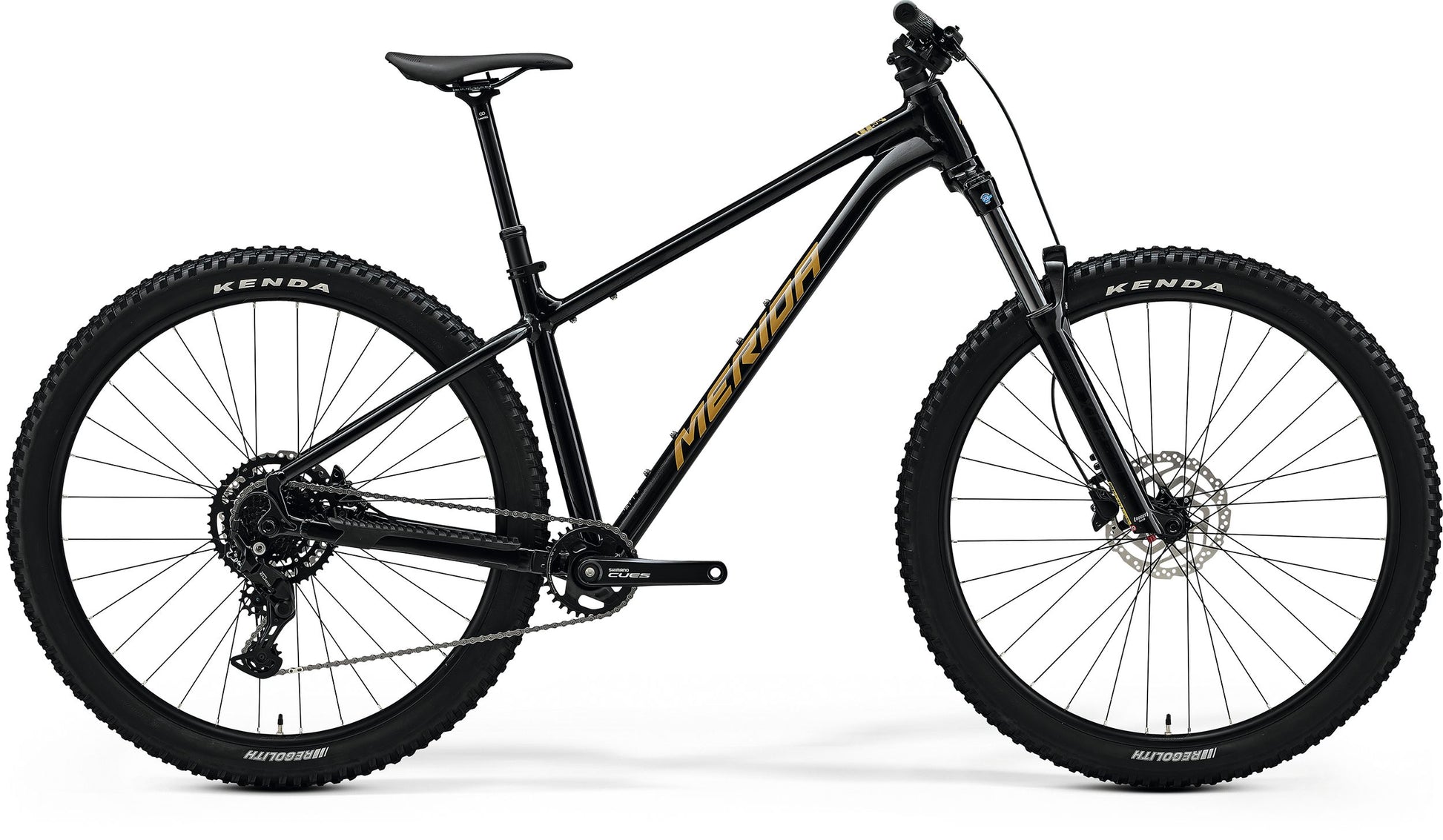

The BIG.TRAIL 300 is a fun-packed and hugely capable trail bike at an amazing price. Its progressive geometry combined with a long travel 140 mm fork and grippy 2.4" wide 29er trail tyres make it the perfect companion for exciting trail sessions and challenging all-day rides over rough terrain. And the long list of exciting features and upgrades adds to its premium looks.
The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.
Features:
- Merida Aluminium Frameset
- SR Suntour XCR34 2CR Air 140mm Suspension Fork
- Shimano Cues U4000 9spd Drivetrain
- Shimano MT200 Hydraulic Disc Brakes
- Merida Comp CC Tubeless Ready Rims
Product Code | R115 |
---|---|
Brand | Merida |
Gender | Unisex |
Frame | TFS - 6061 double butted technoformed aluminium, smooth welding, Boost axle standard, tapered head tube, inboard disc mounts, internal cable routing, BSA BB standard, Max tyre size 29" x 2.5" |
Fork | SR Suntour XCR34 2CR; Air; 140 mm travel; Tapered; lockout; 44mm fork offset; 29x2.4" max. tyre size |
Shifters | Shimano Cues U4000 |
Derailleur (Rear) | Shimano CUES U4000 |
Brakes | Shimano MT200; 2 piston |
Crankset | Shimano CUES UT-400-1; 32 teeth - 170 mm for all sizes |
Cassette | SunRace U9; CS-U980 9AZ; 11-46 teeth; 9 speed |
Chain | KMC xGlide |
Hub Front | Shimano TC500-B; 110x15mm; 32 spoke; Centerlock |
Hub Rear | Shimano TC500-HM-B; 148x12mm; 32 spoke; Centerlock |
Rims | Merida Comp CC II; 25mm inner rim width; aluminium; tubeless ready (tubeless tape and valves not included) |
Tyres | Kenda Regolith; 29" x 2.4"; wire bead |
Handlebar | Merida Comp TR II; aluminium; 780mm wide; 35mm rise |
Stem | Merida Comp TR; aluminium; 35mm diameter; 0 degree rise - Size - 40 mm |
Headset | Acros ICR Merida external neck; Upper and lower IPS sealing |
Saddle | Merida Comp SL; V-mount |
Seatpost | Merida Comp TR II; 34.9mm diameter; in-line; XShort - 150mm, (Short-XLong) - 170mm seat post travel |
Pedal | Pedals not included with this bike but can be purchased separately here |
Wheel Size | 29 inch |
Number of Gears | 9 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-3 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
