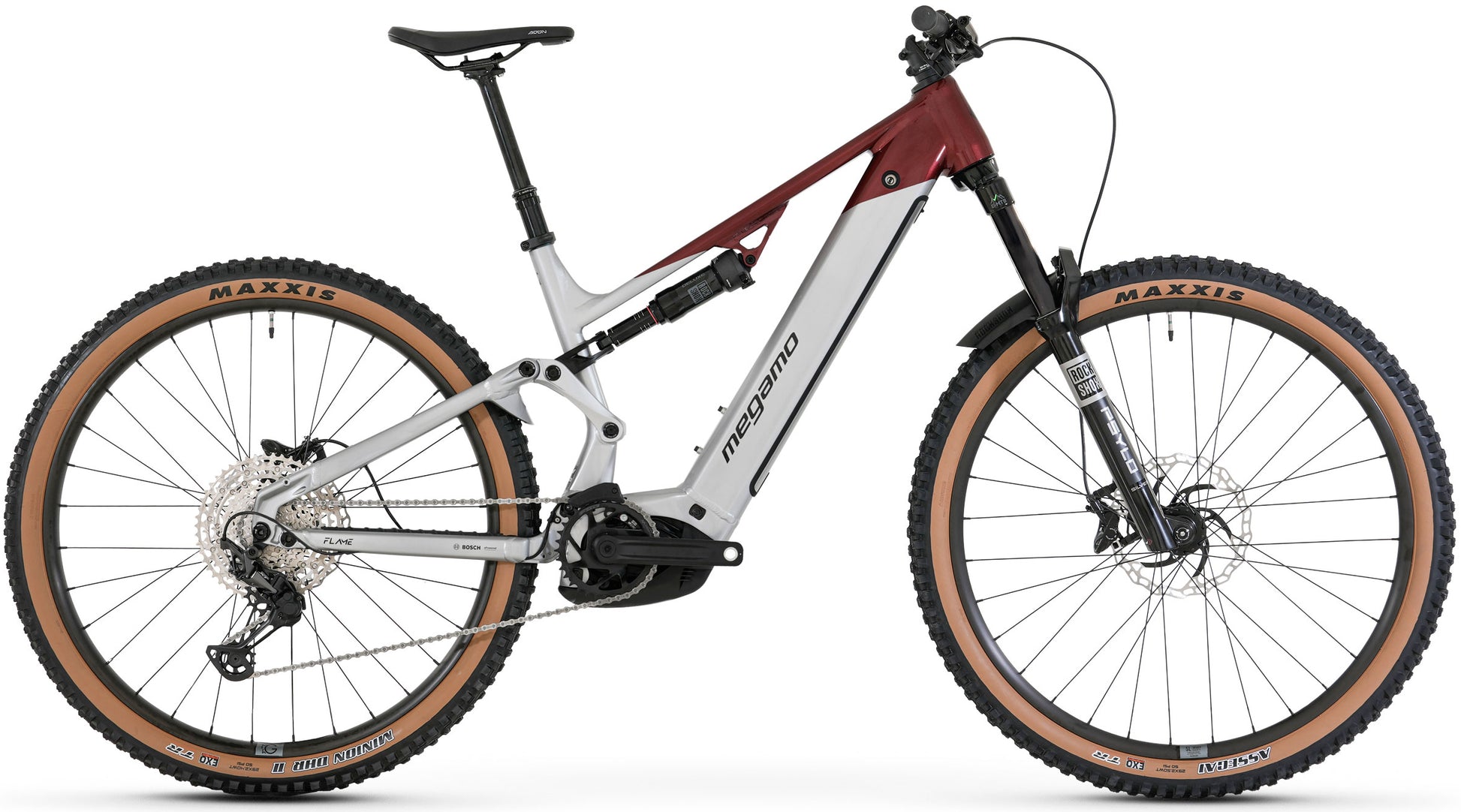

Ride Beyond Limits
The FLAME AL redefines eMTB performance, combining power, range and advanced design to take on any challenge, from technical trails to extreme descents.
Robust and adaptable design
Aluminium frame designed with state-of-the-art technology to offer a lightweight and highly resistant structure, ideal for the most demanding cyclists. Mullet compatibility allows for customisable configurations for a unique experience. ASTM Category 5 rated, it's ready for the most extreme terrain and use.
Unlimited range and power
The new 800Wh PowerTube battery is lightweight, efficient and optimised for exceptional range. With the additional 250Wh PowerMore battery, you reach up to 1,050Wh, exceeding all range expectations. Its removable system makes it easy to recharge and transport, guaranteeing comfort and performance on any journey.
Advanced Aluminium Construction
In the FLAME AL, we have adopted the most advanced technologies in aluminium frame construction, with the aim of optimising performance and the riding experience
Bosch Performance Line CX
Our Flame AL is equipped with the Bosch Performance Line CX motor, now upgraded to deliver 100 Nm, its maximum power at 750 W and assistance up to 400%.
Thanks to these improvements, it ensures immediate acceleration, optimizes energy delivery based on the rider’s cadence, and significantly improves range. Its compact and lightweight design enhances stability, while the eMTB mode automatically adjusts assistance for a more natural and efficient ride on any terrain.
Absolute Control
With the eBike Flow app, every ride is tailored to your unique style. Modify the riding modes to suit your needs: full power for the most demanding climbs or a gentler pedalling for relaxed rides.
Customise your eBike's display to show exactly what you need: speed, distance travelled, battery level, or any other key information. Design an interface to suit your style, and keep the focus on what really matters: enjoying the ride.
Features:
- Megamo Aluminium Frameset

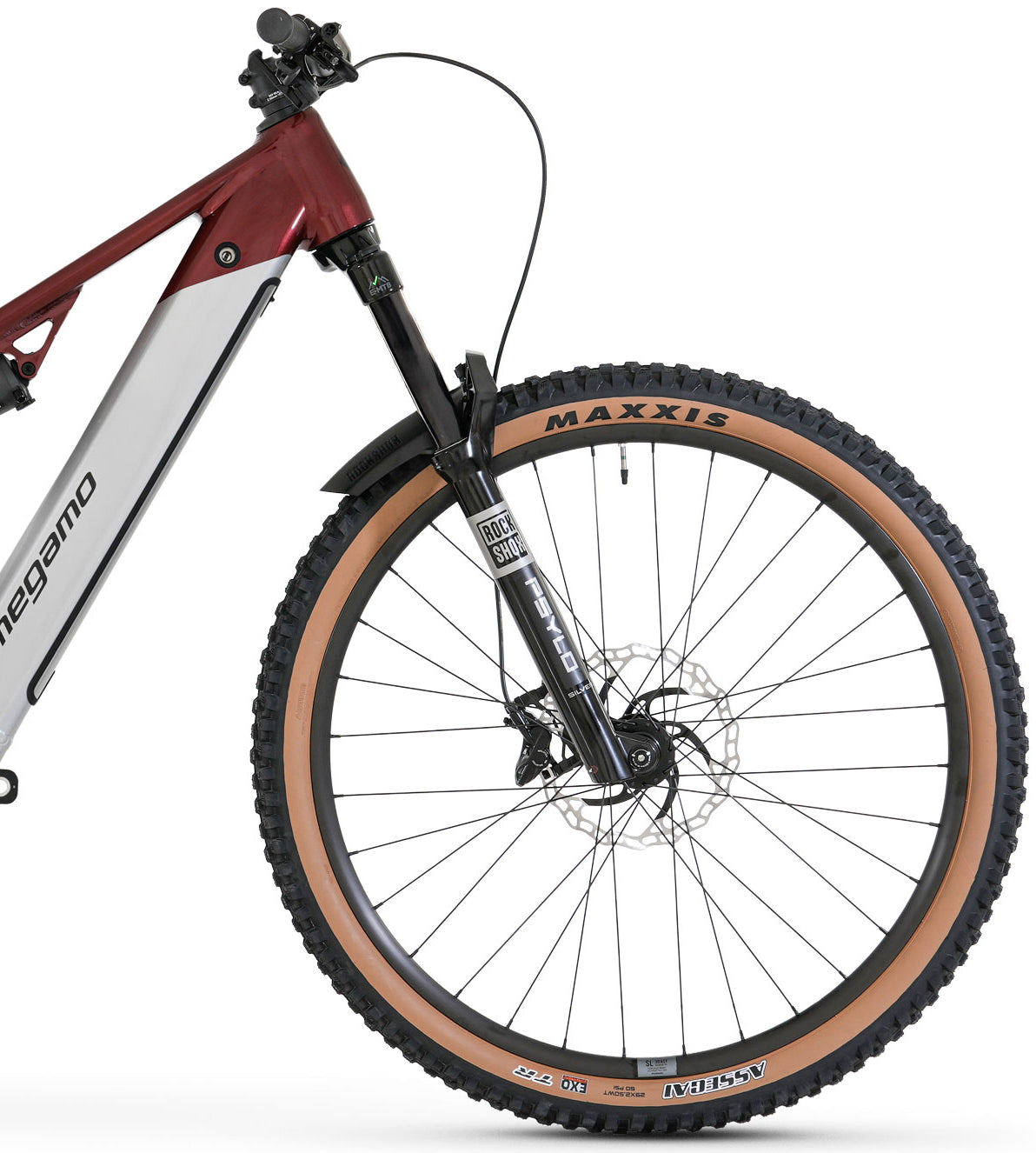

- Rockshox 35 Psylo Silver RC 150mm Travel Fork
- Rockshox Deluxe Select Shock

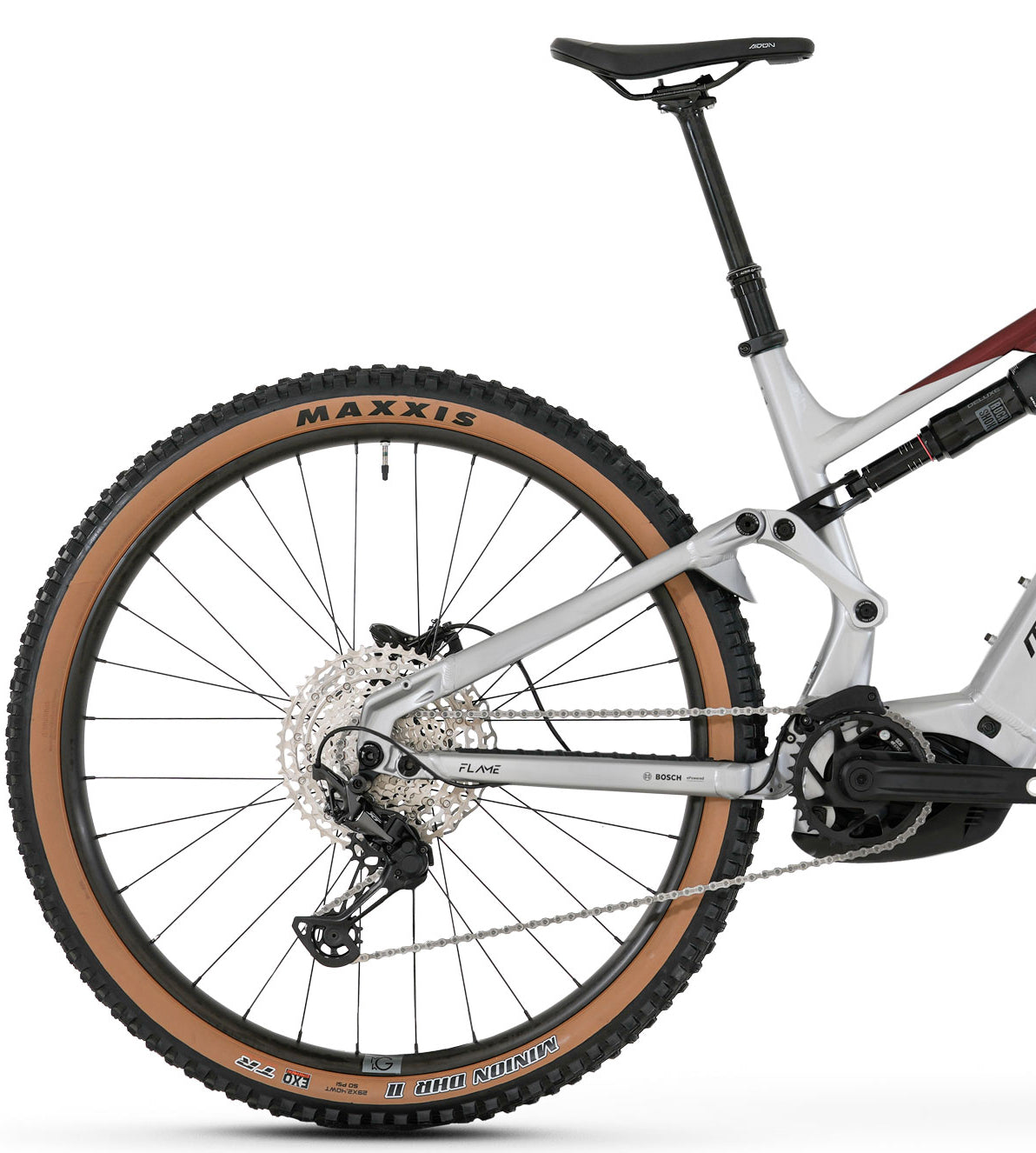

- Shimano Deore/XT 12spd Drivetrain
- Shimano MT520 4-pot Hydraulic Disc Brakes
- Bosch Performance Line CX Drive Unit
- Bosch PowerTube 800Wh Integrated Battery
| Product Code | MG03010303B |
|---|---|
| Brand | Megamo |
| Gender | Unisex |
| Frame | Full Integratted Battery, Aluminium 6061, 12x148 Boost, Horst Link 4, Wheel travel: 160 mm |
| Fork | ROCKSHOX 35 Psylo Silver RC, 150mm Travel, Motion control, Crown, 15x110mm BOOST, 1.8 Tapered, 44mm offset, E-MTB Decal, Gloss black |
| Rear Shock | ROCKSHOX Deluxe Select, 230x60 mm |
| Shifters | Shimano Deore 6100 Speed Rapidfire Plus, 12-Speed |
| Derailleur (Rear) | Shimano XT M8100, Shadow Plus 12-Speed |
| Brakes | Shimano MT520 Hydraulic Disc 4-Piston |
| Crankset | FSA Bosch Chainring 34T CL55 12-Speed, Crankset 320 165mm |
| Cassette | Shimano Deore M6100, 10-51T |
| Hub Front | Megamo Hubs, Front axle 15 x 110 mm |
| Hub Rear | Megamo Hubs, Rear axle 12 x 148 mm BOOST EBIKE+ |
| Tyres | Maxxis 29 x 2.5 Assegai front, 29 x 2.4 Minion DHR II rear |
| Handlebar | Megamo Alloy Butted 31,8 x 800 mm, 12 mm Rise, 6º Back Sweep |
| Stem | Satori Ursa, 35 x 35 mm |
| Saddle | Fizik Terra Aidon X5 |
| Seatpost | Megamo Ø 31,6mm telescopic seat post, remote adjustment S size 125 mm Drop / M size 150 mm Drop / L size 170 mm Drop |
| Pedal | Pedals not included with this bike but can be purchased separately here |
| Wheel Size | 29 inch |
| Number of Gears | 12 |
| Motor | Bosch Performance Line CX, 5gen BDU384Y, Smart System / 100Nm 750W |
| Battery | Bosch PowerTube 800 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 1-3 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
