LOOKS THE PART. BECAUSE IT IS.
With a new-gen approach to our shortest travel bike, the SB120 now has a frame silhouette that’s inspired by its longer legged siblings. Torsional precision and impact clearance has increased, without transferring unwanted feedback to the rider. And the refined Switch Infinity makes this bike punch well above its weight.
UNPARALLELED FEEL. FOR ALL RIDERS.
Every rider deserves a frame feel that’s tuned for them, regardless of frame size. Over the course of hundreds of virtual simulation comparisons and back-to-back carbon prototype testing, we’ve refined our carbon layups to deliver consistent torsional stiffness and flex profiles across all frame sizes. The feel is precise yet compliant while structurally balancing light weight and durability.
SPEED METAL.
Our new pivot designs use 100% standard sized cartridge bearings secured with precision — machined floating collet axles. All bearings are pressed into the linkage assembly vs the swingarm or front triangle.
LEVERAGE RATE.
A relatively linear progression curve gives riders usable, active travel at 30% sag – a far greater margin than other 120mm travel bikes. The SB120’s small bump compliance delivers incredible traction. Its supportive mid-stroke ensures riders don’t blow through travel when pushing against the suspension in turns or when getting the wheels off the ground. Oh shit moments are handled with ease – the curve has been tuned with increased bottom-out control.
CABLE MANAGEMENT.

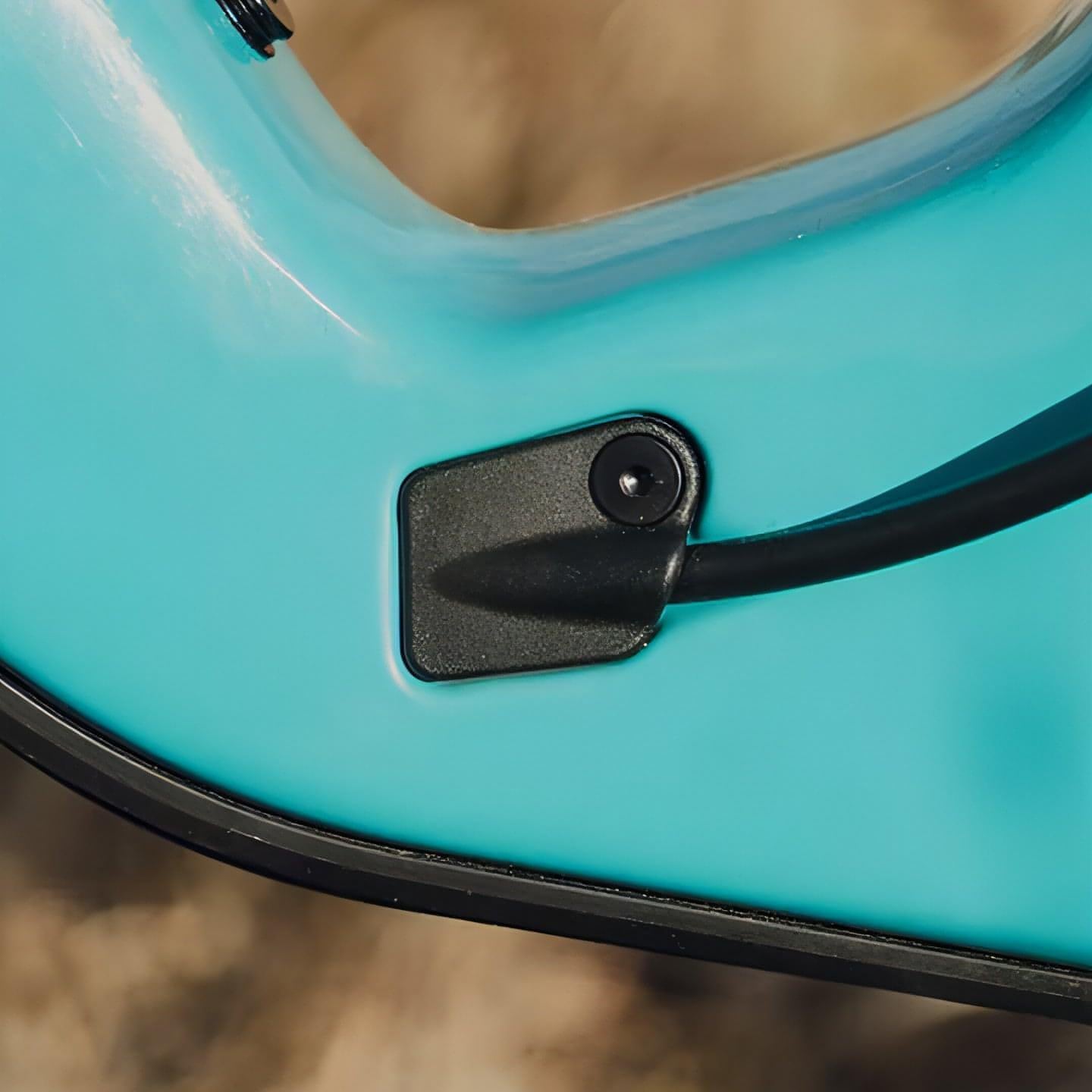

Internally routed cable tubes with secure closures at entry and exit points eliminate rattles and cable rub. Whether running a mechanical drivetrain and dropper or a wireless setup, cable management is intuitively easy and quiet.
THREADED BB.
Threaded aluminum bottom bracket shell with integrated ISCG-05 tabs. This critical drivetrain interface is now more durable, cleaner, and easier to service.
UNIVERSALLY READY.

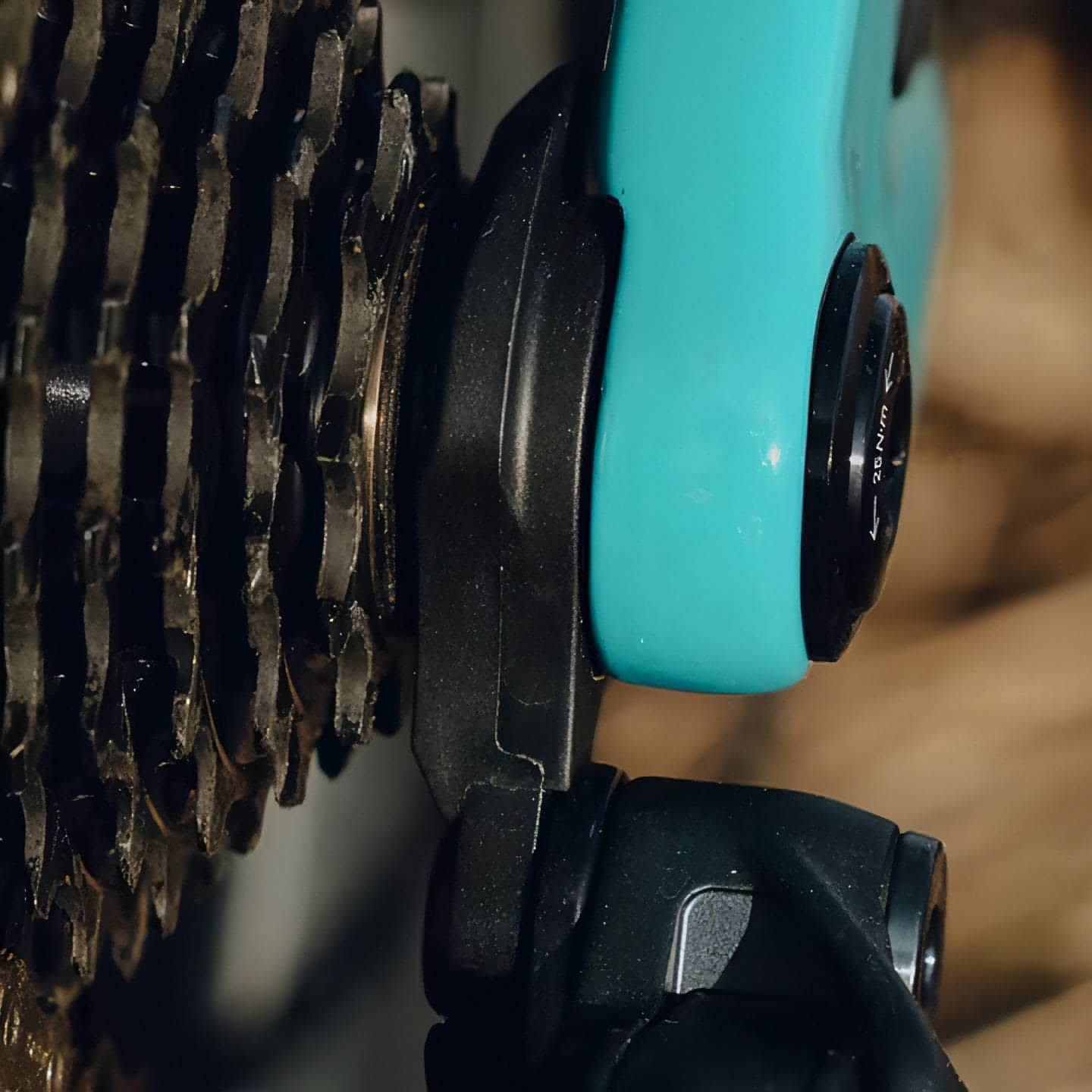

If a hanger bending crash occurs, the new Yeti models use the Universal Derailleur Hanger (UDH) interface — the industry standard mount for a rear derailleur. The UDH is available in nearly any bike shop, Yeti dealer or not.
FULL DROP.
As the capability of our bikes continues to increase, so does their ability to run modern day, full-stroke dropper posts. Our seat tube is shorter to allow for a longer dropper posts. Most riders will be able to use a 150mm dropper posts on Small frames*, 175mm on Medium frames*, and 200mm+ dropper posts on L-XXL frames*, respectively.
*Dependent on actual seat height on specific bike size.
MIRCO WISHBONE. MEET ULTRA COMPACT EXTENDER.
An all new ultra-compact, minimalist, 1-piece shock extender was designed specifically for the demands of the shorter travel SB120. It optimizes leverage rate while pushing the shock forward in the frame. This forward positioning allows for a large range of shock compatibility, decreases stand over height, reduces shock tab sizes, increases water bottle compatibility, and increases downtube clearance.

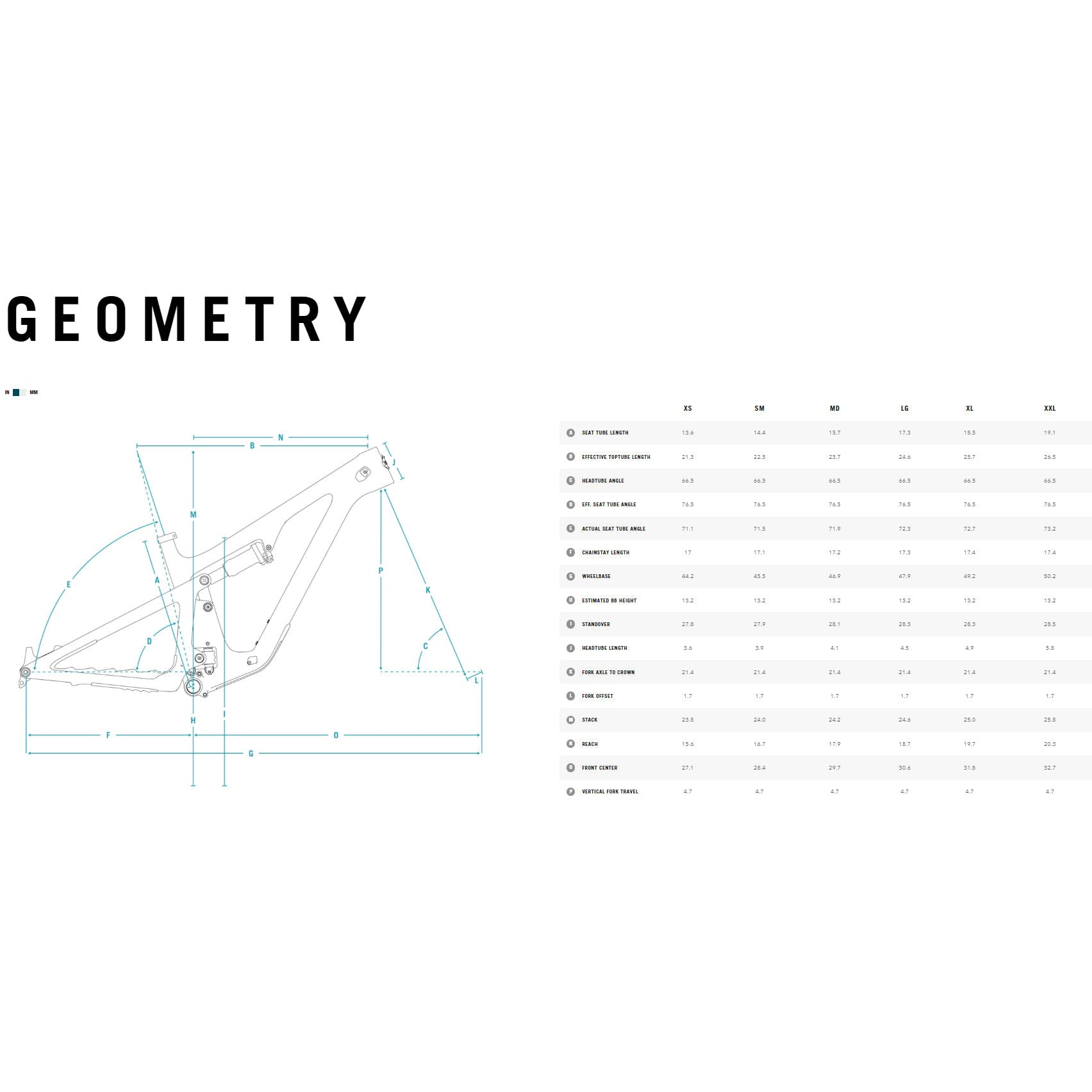

MORE BALANCED AT SPEED.
Its nimble reach darts through singletrack. Its steep seat tube angle makes light work of climbs. Its head angle and balanced vertical suspension travel prioritize downhill fun, making it an incredible Trans-Cascadia style race whip. Point is, the SB120’s geometry is so balanced and agile, forgetting how much travel it has on the way up and down is totally possible.
A REACH FOR AGILITY
A more neutral position keeps riders weighting both wheels more evenly with a modern reach for agility, keeping things spritely.
BALANCED VERTICAL TRAVEL
Modern head angles are slack, so we run more front travel than rear travel to balance the bike. This delivers a brilliantly balanced ride.
SIZE SPECIFIC CHAIN STAYS
Chain stay length increases with frame size, ensuring the rear center of the bike is proportionately correct for riders of all sizes (XS-XXL).
SIZE SPECIFIC SEAT TUBE ANGLES
Riders of all sizes stay in a powerful pedal position with seat tube angles that increase with frame size. This makes the transition from seated to standing easier, especially for taller riders.
Frame Highlights:
- New Short Travel Trail Frame Platform
- New Switch Infinity Assembly On T-Series
- New Threaded Bottom Bracket
- New High-clearance Downtube
- New Dual-density Downtube Protection
- Universal Derailleur Hanger (UDH)
- Secure, Fully Enclosed Internal Cable Management
- Compatible With Long Dropper Posts
- 100% Standard Sealed Enduro Max Bearings
- Floating Collet Axle Pivot Design
- Ultra-compact Shock Extender
- Boost Spacing
- Sizes XS-XXL
- C-series Carbon Frame
- Fox Performance 34/130mm
- Fox Performance Float DPS
- Crank Brothers Systhesis Enduro 30mm
- Sram G2 R
- Sram GX Eagle
- Oneup Dropper Post 31.6mm
Product Code | YCB23120CSMPTUPAC024300 |
---|---|
Brand | Yeti |
Gender | Unisex |
Frame | C-Series Carbon Frame |
Fork | FOX PERFORMANCE 34/130MM |
Rear Shock | FOX PERFORMANCE FLOAT DPS |
Shifters | SRAM GX EAGLE |
Derailleur (Rear) | SRAM GX EAGLE |
Brakes | SRAM G2 R |
Crankset | SRAM GX EAGLE 30T 170MM |
Chain | SRAM GX EAGLE |
Handlebar | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM |
Stem | BURGTEC ENDURO MK3 35X50MM |
Headset | CANE CREEK 40 INTEGRATED |
Seatpost | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XXL: 210MM |
Pedal | Pedals not included with this bike but can be purchase separately here |
Wheel Size | 29 inch |
Number of Gears | 12 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-4 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
