Like the reliable tool you grab for every job, the Smuggler is the go-to bike for any trail pointed up, down, and all around.
With dual 29 inch wheels, 130mm rear and 140mm front travel, the Smuggler may just be the most versatile bike in our lineup. A highly progressive leverage curve and comfortable, confidence-inspiring geo make it eager to keep going mile after mile while remaining surefooted in even the most technical terrain. Sitting squarely between the Spur and Sentinel in travel, geometry, and capability, it shares qualities of both. Inspiring and rewarding to hammer on your favorite singletrack, while never holding you back when the trail gets steep, the Smuggler will make sure you enjoy it all.
Inspiration
We went into the Smuggler project with the intention of creating a bike that had the quick and high-energy feel of the Spur, but with a bit more travel front and rear. What we ended up with was a perfect blend of the Spur and Sentinel in geometry, travel, capability, and weight. It's not all downhill in the PNW; there's plenty of singletrack, technical trail, and meandering connective routes. The Smuggler is perfect for a day when your path comes across all of the above.

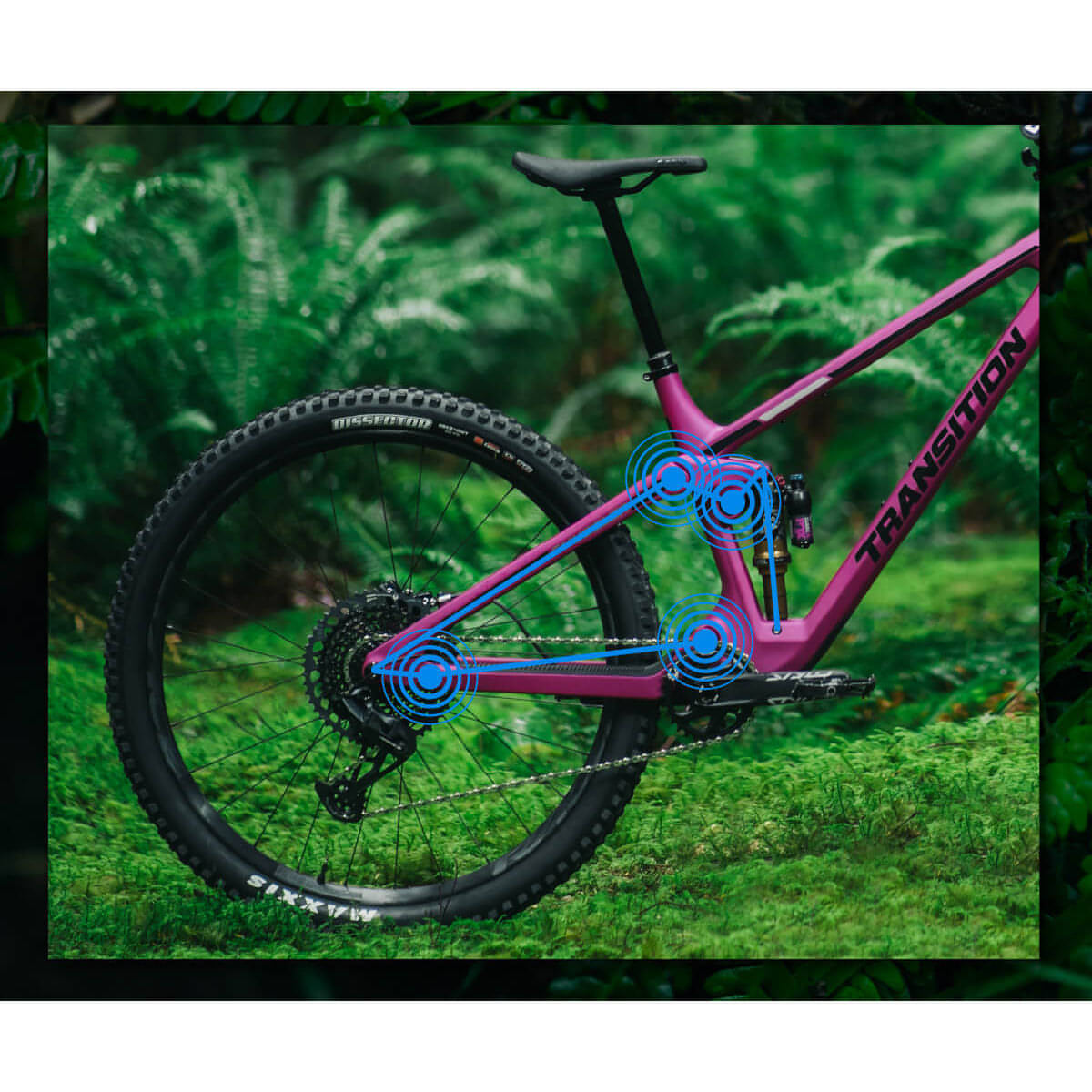

Progression In All The Right Places
The kinematics are similar to the Spur with a little over 27% progression. This provides a bottomless feel in a mid-travel package. Paired with the Fox Float X shock, the Smuggler can be set up to suit any rider's preference. Looking to increase rear travel? Simply remove the travel reducer in the shock to bump the travel up to 140mm. Looking for a bit more progression? Just add a larger volume spacer. All of this equates to a super lively, active, and forgiving rear suspension feel in any terrain.

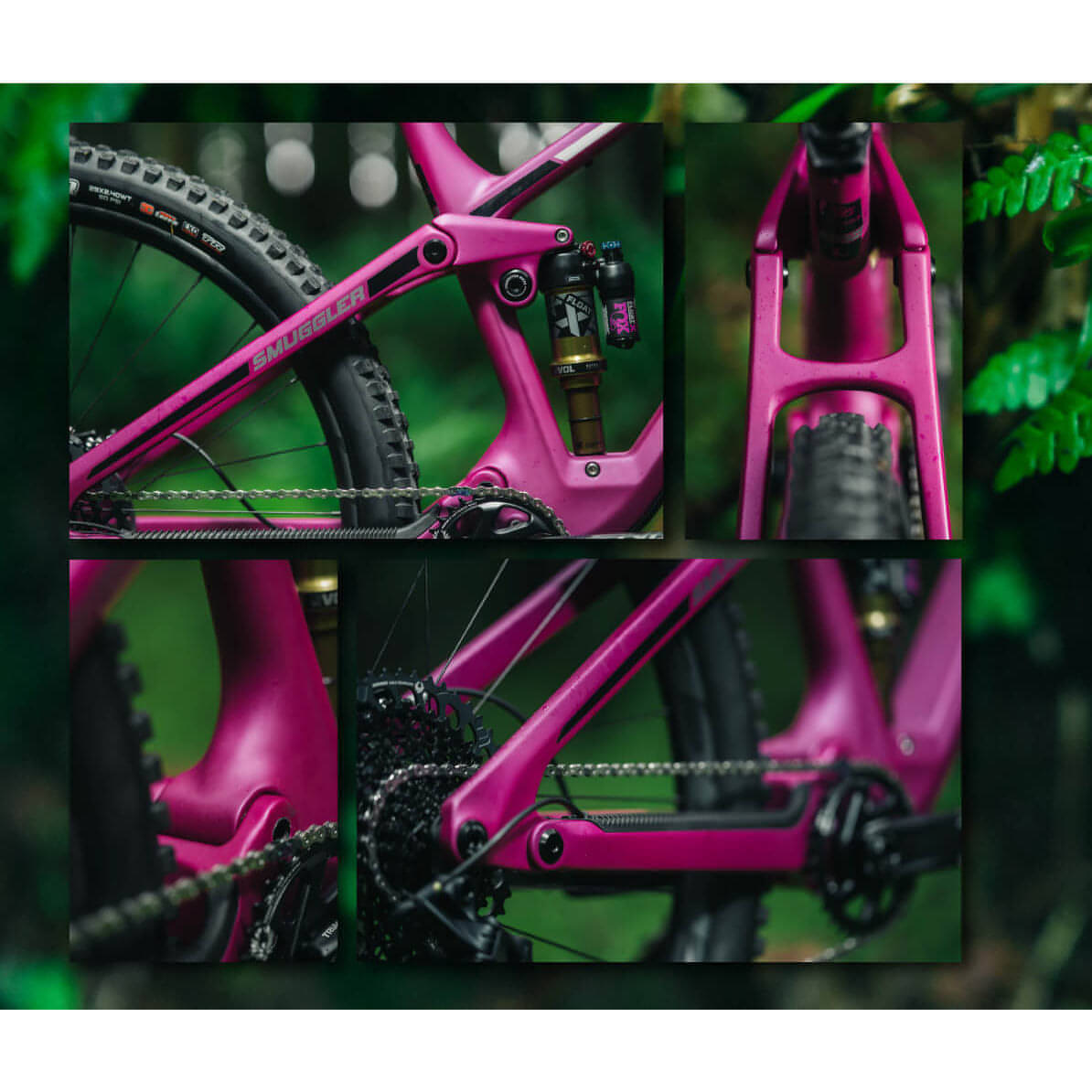

Frame Design Evolution
The Smuggler exhibits a few frame design features that further our push to have clean aesthetics while remaining easy to service. The most notable is the headtube area that provides better functionality and serviceability. The new headtube has integrated bearing cups and no longer needs headset cups pressed into the frame. This allows the frame to have super clean cable ports at the front of the headtube with fully guided internal cable routing from the headtube to the port above the bottom bracket shell. From there, cables cleanly enter the rear triangle hidden from view.
GiddyUp Suspension
We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.
Dual 29" Wheels
Clearance to run up to 2.5" tires.
140mm front and 130mm rear travel
The perfect amount of travel for moving around the mountains.

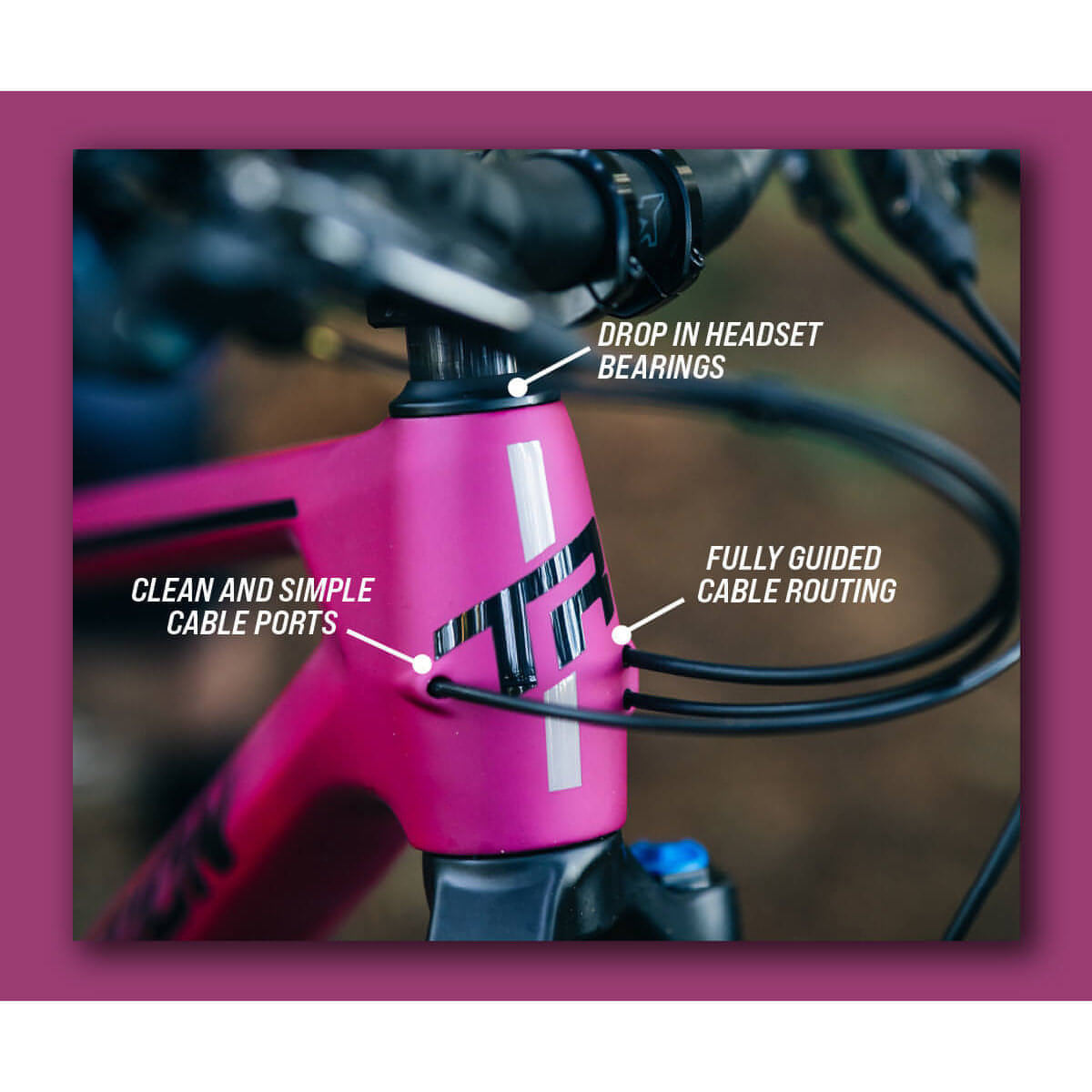

Drop in Headset Bearings
Eliminates headset cups for simpler setup and durability.
New Cable Routing
Clean headtube cable routing for precise cable management.
Internal Cable Routing
Guide tubes inside the frame for super easy setup.
Size Specific Chainstays
As the frame sizes grow, so do the chainstays to keep rider weight balanced on the bike.
27% Progression
Allows the bike to be incredibly responsive to the trail while still being able to take large hits.
Gear Accessory Mount
Ditch the backpack and keep essential gear for on trail repairs.
UDH
SRAM's universal derailleur hanger available at almost every bike shop.

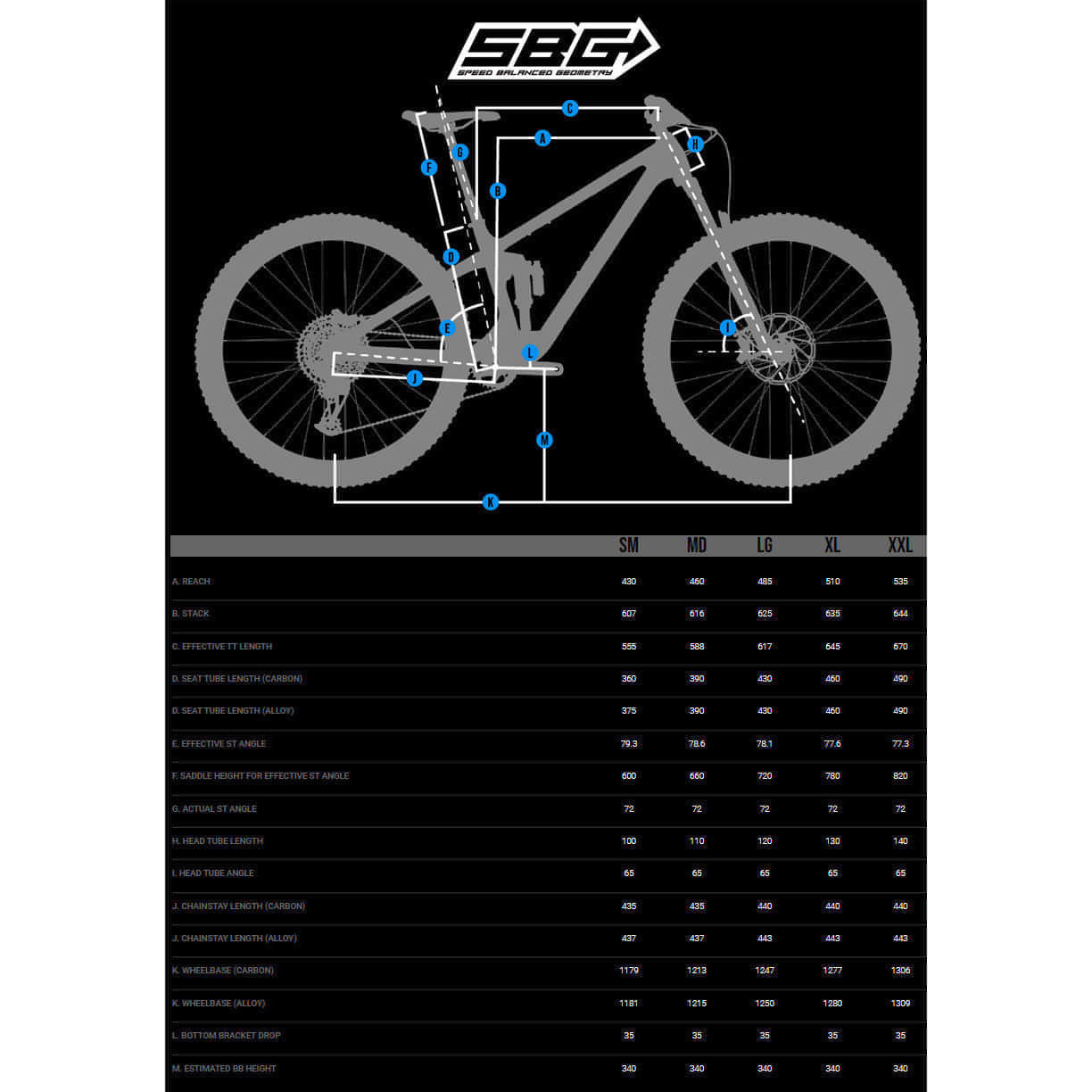

5 Sizes
We make it easy to find the perfect size for you.
Lifetime Warranty
We believe your bike should last longer than you.

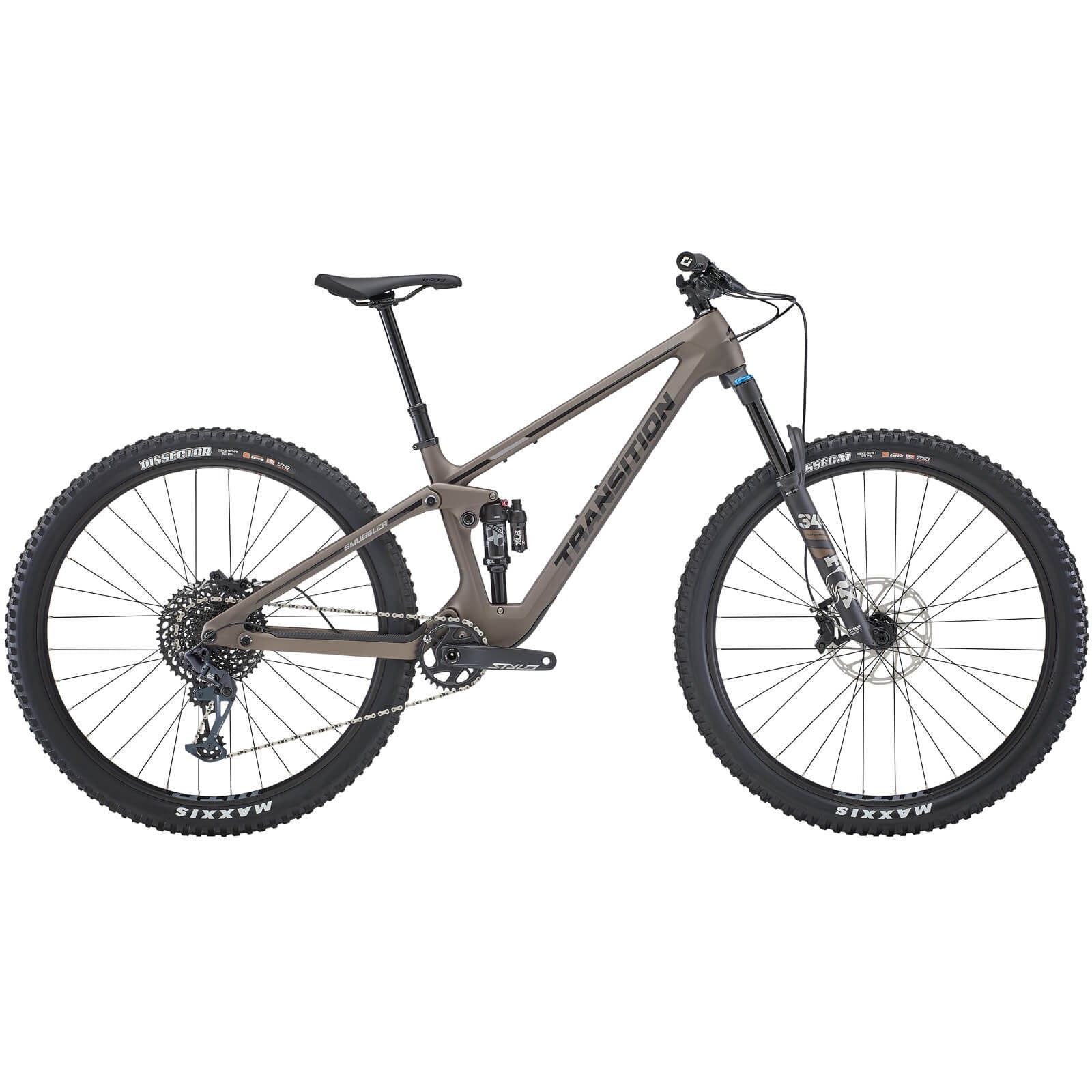

Features:
- Smuggler Carbon 130mm
- Fox Float 34 Grip Performance (140mm)
- Fox Float X Performance 2 Position
- SRAM GX Eagle 12sp
- SRAM Code R Brakes
- OneUp Dropper Post
Product Code | 01.23.11.3952 |
---|---|
Brand | Transition |
Gender | Unisex |
Frame | Smuggler Carbon 130mm |
Fork | Fox Float 34 Grip Performance (140mm) |
Rear Shock | Fox Float X Performance 2 Position |
Shifters | SRAM NX Eagle MMXv |
Derailleur (Rear) | SRAM GX Eagle |
Brakes | SRAM Code R |
Crankset | SRAM Stylo 6K DUB (170mm x 32T) |
Cassette | SRAM XG 1275 (10-52t) |
Hub Front | Novatech D791SB |
Hub Rear | Novatech D902SB |
Rims | WTB ST i30 |
Handlebar | RaceFace Chester 35 SM (800x20) MD/LG/XL/XXL (800x35) |
Stem | RaceFace Aeffect R (40mm) |
Headset | FSA NO.42/48/ACB |
Saddle | SDG Bel Air V3v |
Seatpost | OneUp Dropper Post SM (150mm) MD (180mm) LG/XL/XXL (210mm) |
Pedal | Pedals not included with this bike but can be purchase separately here |
Wheel Size | 29 inch |
Number of Gears | 12 |
