Transition

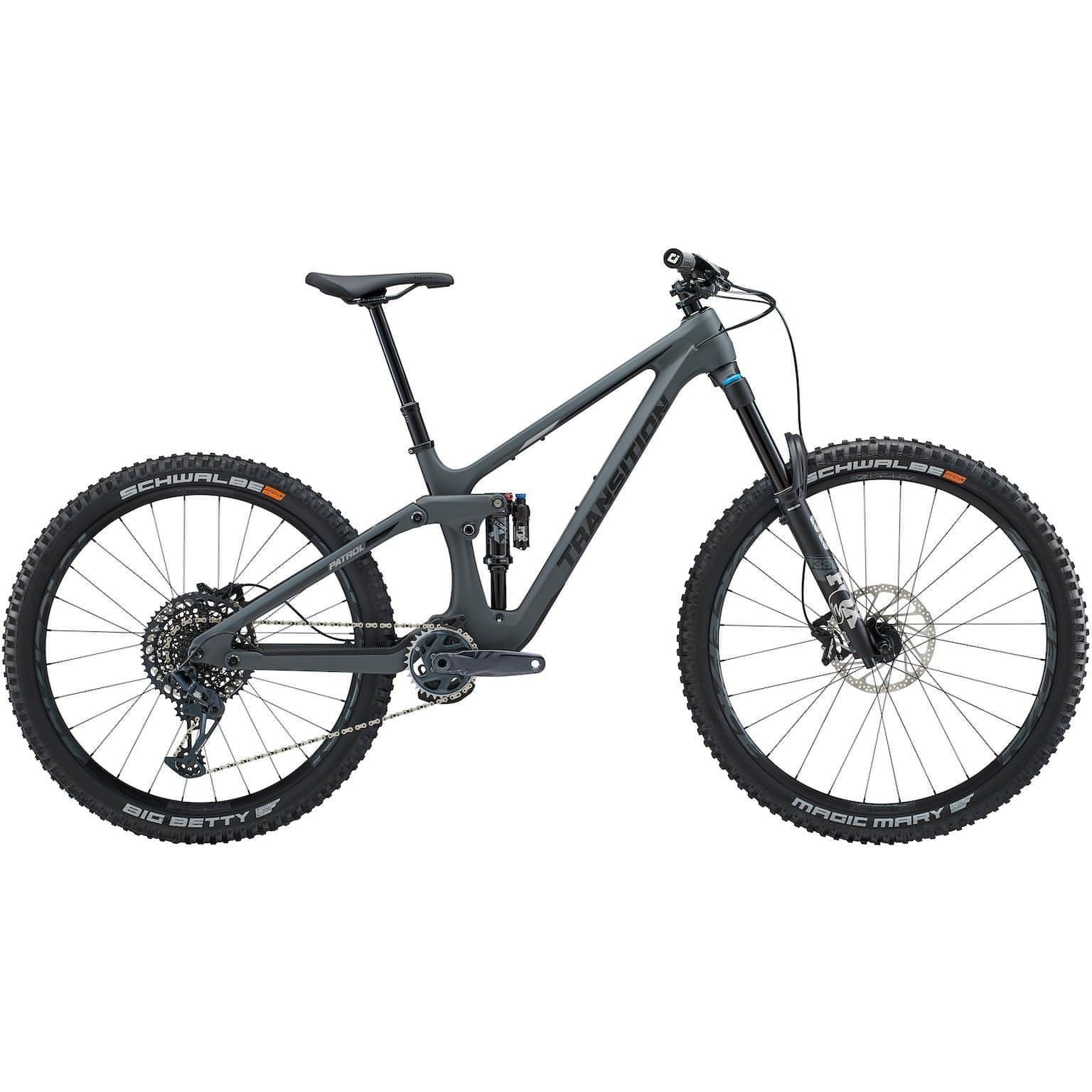

Patrol GX Carbon Mountain Bike 2024 - Moonshadow
Transition Patrol GX Carbon Mountain Bike 2024 - Moonshadow
Patrol GX Carbon Mountain Bike 2024 - Moonshadow
Transition Patrol GX Carbon Mountain Bike 2024 - Moonshadow
Colours Moonshadow
** Not available when using a discount code.
- Price Beat PromiseFound it cheaper? We will price match here
- Got a question?Ask our expert customer service team here
- PaymentCredit/Debit card, Apple Pay, Google Pay, PayPal, C2W or Finance options
- ReturnsNo-fuss, 30-day returns
- 100% Genuine ProductAuthorised retailers of industry leading brands
The mixed wheel Patrol has a new haircut but is still down for anything and truly unapologetic when it comes to shredding trail
Being one of the longest standing bikes in our lineup, it was the obvious choice to mix it up. Updated geometry to accommodate the 29" front / 27.5" rear wheels and revised suspension tune might just make you ride all day, and then all night. Jibbing, jumping, pumping and hooting your way down the trail, the updated Patrol loves to party. From bike parks to your local trails, the Patrol isn't concerned with where you ride but rather how much fun you are having.
Lifetime Warranty
At Transition Bikes we take pride in the quality of our products and are stoked to offer a lifetime warranty for the original owner and our stellar crash replacement program. We got your back so you don't have to worry about your bike.
Frame Material
The Patrol carbon uses premium Japanese Toray fiber using a unique latex coated EPS molding process to create tighter edge radius control using less material. The Patrol alloy features a frame made from tough and dependable heat treated 6061 aluminum to strike the right balance of strength, durability and ride quality.
Pivot Technology
Collet main pivot technology improves rear end stiffness and keeps your pivot hardware tight. Additional bearing shields prevent main pivot bearing contamination when washing your bike or riding in wet conditions.
Frame Protection
We keep your bike rides quiet and your frame safe from damage with fully integrated, flush-mounted rubber frame protection at all critical areas. In addition to downtube and seatstay protection, the ribbed chainstay protector features expanded coverage of the rear dropout pivot area.
Geo Adjust Chip
Change the attitude of the bike with a simple flip of a chip. Our high and low settings give you two very usable geo settings to suite your riding style. Our high setting is comparable to most other companies low setting so there is a high shred warning in effect.
Size Specific Chainstays
The Patrol has two size specific chainstay lengths to provide balanced handling and rider weight distribution across the range of sizes.
Enduro Max Bearings
We exclusively use Enduro Max suspension pivot specific bearings in standard sizes that are readily available worldwide. Dual bearings are used at the dropout pivots for frame stiffness and additional c-clips lock the rocker bearings in place under torsional loads.
Gear Accessory Mount
Our underside top-tube accessory mount allows you to carry a spare tube or other goodies safely on your frame in case you are looking to ditch the backpack.
Dual Crown Fork Compatible
Both the carbon and alloy frame options are fully dual crown compatible for those wanting to dip their toes into the DH world.
Tyre Clearance
Ample clearance for mud and tires up to 2.6" width.
User Friendly Carbon Frame Cable Routing
To simplify maintenance and keep your bike noise free, the rear derailleur cable is routed through guide tubes in the front triangle and chainstay.
Water Bottle Compatibility
We keep your water bottle clean inside the front triangle so you can keep hydrated without worrying about mud making it to your mouth.
Universal Derailleur Hanger
The Patrol features a SRAM Universal Derailleur Hanger that protects your derailleur against chain jams by pivoting back and out of the way, and slips slightly when encountering impacts. It improves shifting performance, guarantees better alignment, works with all drivetrains and is available anywhere.

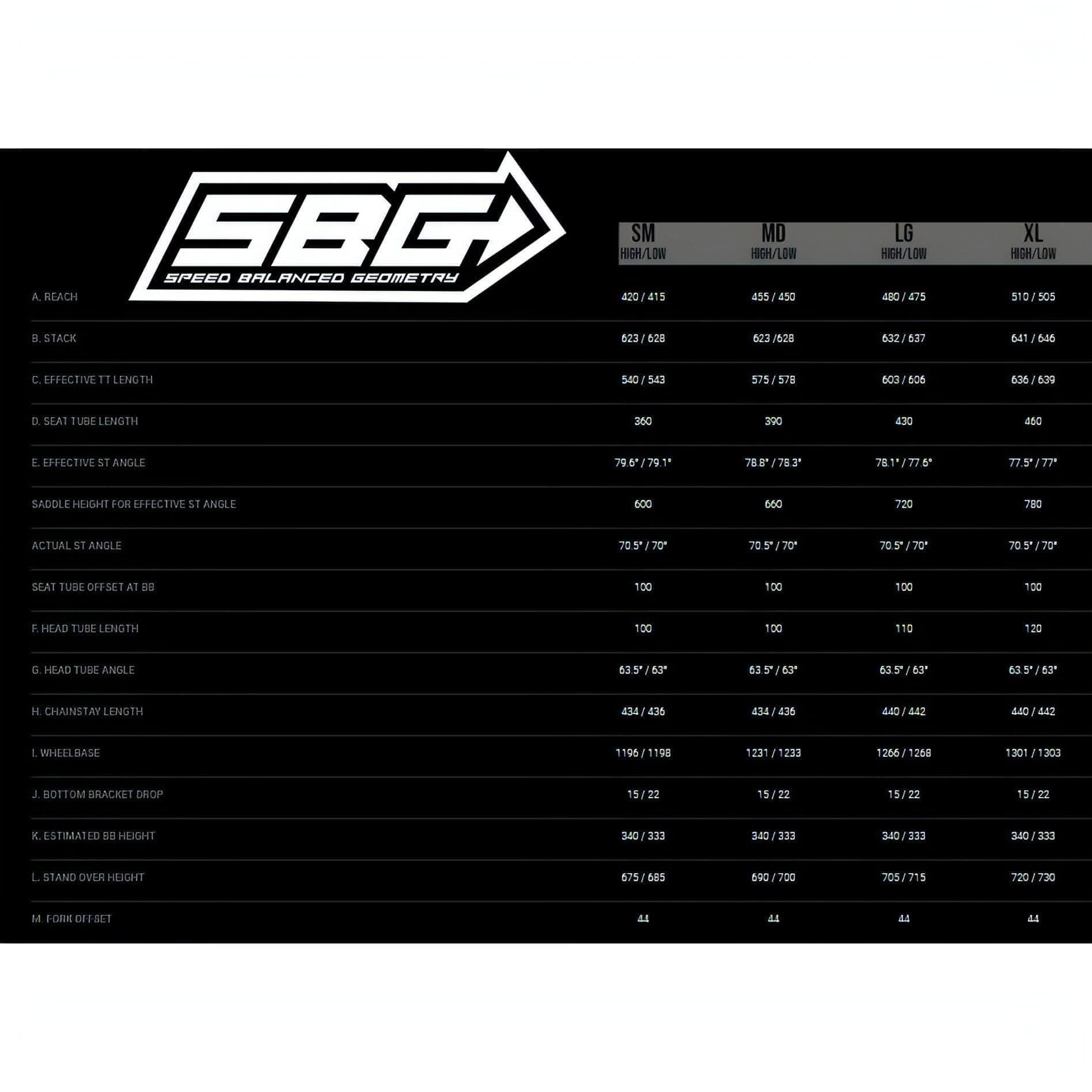

Speed Balanced Geometry
SBG ensures the bike maintains low speed agility, front wheel traction, and proper rider weight balance while actually increasing confidence in steep terrain and at high speeds. With SBG, a slacker head tube angle is combined with a all new reduced offset fork standard, preventing the front wheel from being too far in front of the rider.
This improves front to rear weight distribution on the bike, which is often out of balance on long and slack bikes. One of SBG's greatest benefits is that it creates a confident steering feel that adapts to wheel speed. More stability when going fast, more agility on technical slow speed maneuvering as well as improved traction, control and confidence for any skill level of rider.
Giddyup Suspension Design
We want to make it as easy as possible to experience great rear suspension performance. The GiddyUp suspension system is designed to behave intuitively across a broad range of setup. Because, we get it, sometimes you just want to grab your bike and GiddyUp, without checking your setup. When you do, it will always feel good.
Features:
- Patrol Carbon 160mm Travel Frame
- Fox Float 38 Performance Elite 160mm Travel
- Fox Float X Performance Elite
- SRAM GX Eagle 12sp
- TRP DH-R Evo Brakes
- OneUp Dropper Post
- RaceFace Wheelset
| Product Code | 01.23.11.3434 |
|---|---|
| Brand | Transition |
| Gender | Unisex |
| Frame | Patrol Carbon 160mm |
| Fork | Fox Float 38 Performance Elite 160mm Travel/44mm Offset |
| Rear Shock | Fox Float X Performance Elite (205x60) |
| Shifters | SRAM GX Eagle |
| Derailleur (Rear) | SRAM GX Eagle |
| Brakes | TRP DH-R Evo |
| Crankset | SRAM GX Eagle DUB (32t/165mm) |
| Cassette | SRAM XG 1275 (10-52t) |
| Chain | SRAM GX Eagle |
| Hub Front | RaceFace Trace 28H |
| Hub Rear | RaceFace Trace 28H |
| Rims | RaceFace Aeffect R |
| Handlebar | ANVL Mandrel Alloy 35 SM (800x20) MD/LG/XL (800x30) |
| Stem | ANVL Swage (40mm) |
| Headset | FSA NO.55R/57 |
| Saddle | SDG Bel Air 3 |
| Seatpost | OneUp Dropper Post |
| Pedal | Pedals not included with this bike but can be purchase separately here |
| Wheel Size | 29 / 27.5 inch |
| Number of Gears | 12 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-4 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
