V10 handling at Syndicate speeds.
The Nomad's reputation is built on consistently pushing the envelope on how lawless a single-crown bike can get while still remaining a capable daily driver.
The latest iteration nudged the travel and geometry further towards the outer limits, and we surprised ourselves at just how well-rounded it turned out.
The fourth generation design saw a dramatic shift to the lower-link mounted shock configuration. The shock rate is a short-travel version of the V10—which means feather-light small bump sensitivity right off the bat, supportive mid-stroke, and overall progression that you'd normally only experience on a DH bike.

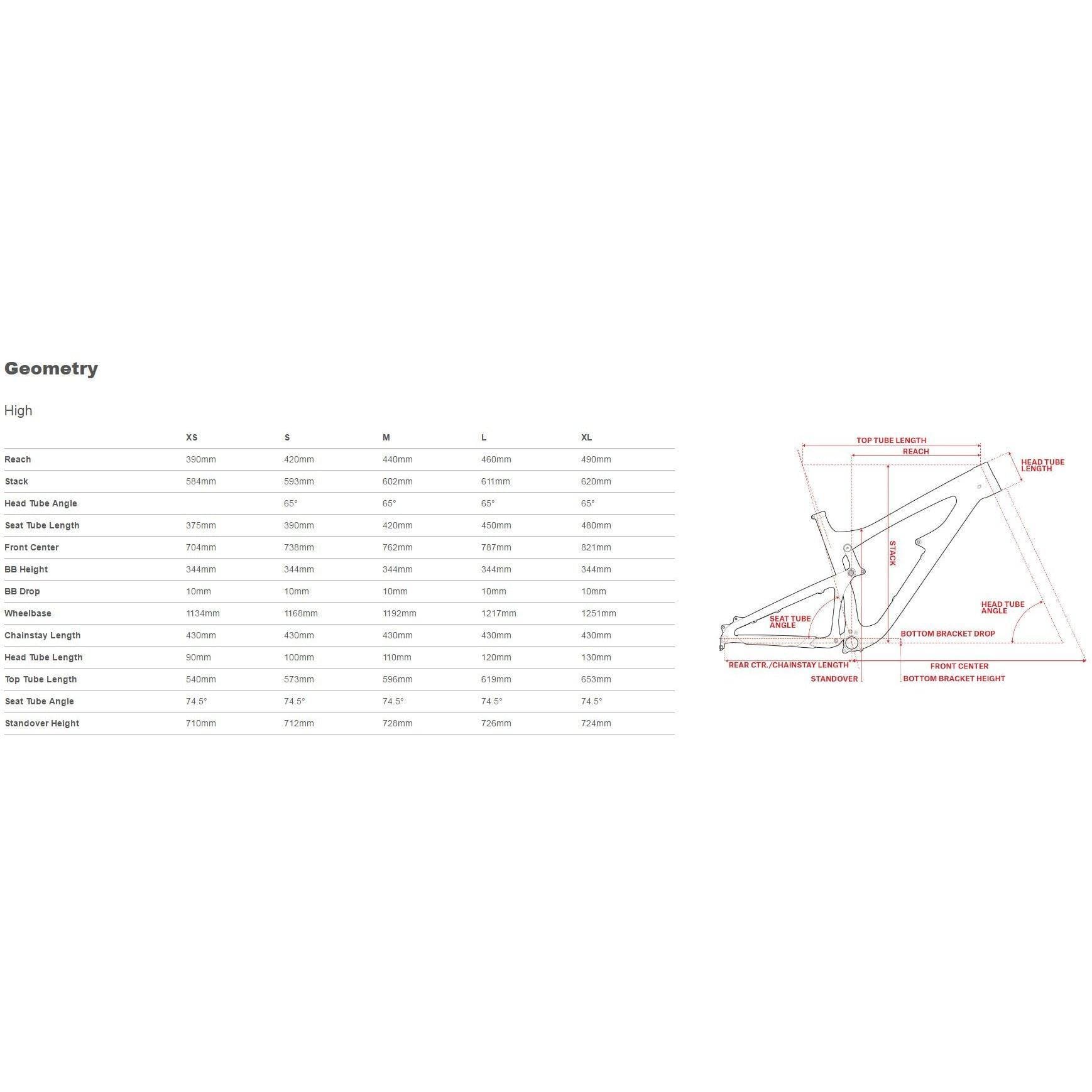

To handle all this newfound capability, the geometry was adapted too. It's longer and lower-slung to ensure maximum stability and confidence on absolutely everything. At the same time, the Nomad’s still a trail bike. It pedals well and tackles valley-to-valley alpine runs and all-day missions without skipping a beat—a fact helped by its pedal-friendly seat tube angle and standard 170mm dropper post fit.
Key Features
- Carbon frame
- Wheel size: 27.5"
- Rear travel: 170mm
- RockShox Super Deluxe R rear shock
- Suspension System: VPP
- Front Derailleur: No compatibility
- Headset/Headtube: Integrated; IS41 upper, IS52 lower
- Seat Post: 31.6mm
- Seat Clamp: 36.4mm
- Eye to Eye length: 230mm
- Stroke: 60mm
- Fork Compatibility: 170-180mm
- BB Shell: 73mm Threaded
- Max Tire Size: 2.5"
- Max Chainring Size: 36t
- Chainline Spec: Boost
- Max Chainring Size: 36t
- Brake Types: Post Mount
- Water Bottle Mounts: 1 inside main triangle
- Shock Mounting Bolt Front: 8x20mm
- Shock Mounting Bolt Rear: 8x30mm (compatible with standard or Rockshox bearing eyelet)
Build Kit Highlights

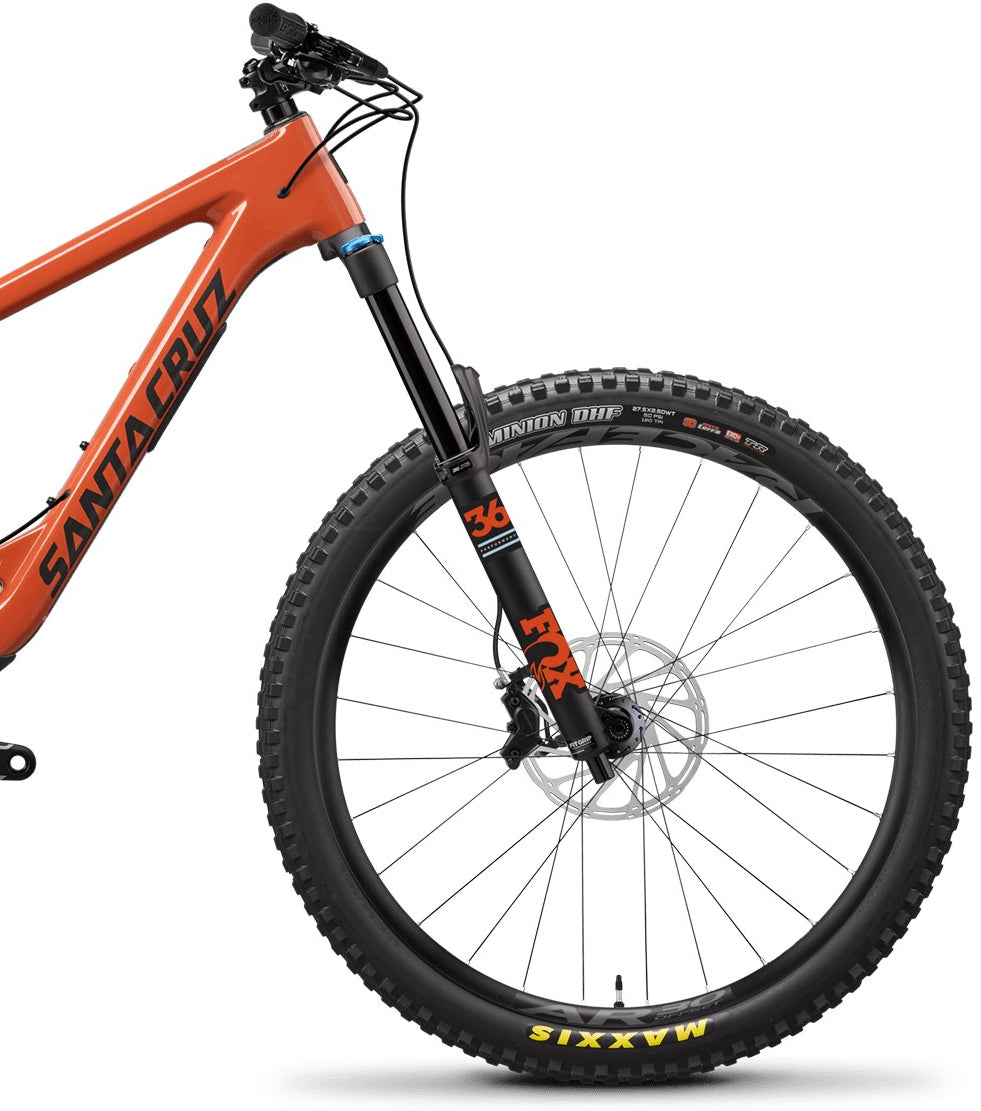

- FOX 36 Float Performance 170 fork
- SRAM GX Eagle 12 speed drivetrain components
- SRAM Code R brakes
- RockShox Reverb Stealth 31.6 seatpost
- RockShox Super Deluxe R rear shock
- Approximately 14.12kg / 31.13lbs
Product Code | SCN4CSORMY19-S |
---|---|
Brand | Santa Cruz |
Gender | Unisex |
Frame | Carbon C Frame |
Fork | FOX 36 Float Performance 170mm |
Rear Shock | RockShox Super Deluxe R |
Shifters | SRAM GX Eagle, 12-speed |
Derailleur (Rear) | SRAM GX Eagle |
Brakes | SRAM Code R |
Cassette | SRAM Stylo 7k 148 DUB, 170mm (XS-S), 175mm (M-XL) |
Chain | SRAM GX Eagle |
Hub Front | DT Swiss 370, 15mm x 110mm |
Hub Rear | DT Swiss 370, 12mm x 148mm |
Rims | Race Face AR Offset 30 |
Saddle | WTB Silverado Pro |
Seatpost | RockShox Reverb Stealth |
Pedal | Pedals not included with this bike but can be purchased separately here |
Wheel Size | 27.5 inch |
Number of Gears | 12 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 3-5 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
