GRAVEL FROM THE GROUND UP
Endless exploring, overnight adventures, rough backroads and gravel trails, there are a lot of ideas about what gravel is. What isn't in doubt is that a gravel bike needs to do them all with control, speed and comfort but above all with a thirst for fun.
Designed from the ground up for gravel, Terra isn't a repurposed road bike or a slimmed down mountain bike. Add comfort to your road adventures, finally discover where that dirt trail leads or let your trips spread overnight. There is a wide world out there and Terra is ready to explore it with you.
A MORE CAPABLE BIKE
Gravel is a universe of different users and terrains. For that reason Terra is a complete platform with different models in aluminium and carbon, offering the most inclusive solutions that won’t leave anyone indifferent.
COMPANION FOR ENDLESS EXPLORING
The aluminium version is your perfect companion for endless exploring and overnight adventures, offering the most versatility within our Terra family.
Advanced hydroformed aluminum and optimized tube sizing maximize comfort for those long rides, while the integrated rear rack mounting points allow you to fit a variety of rear panniers. Whenever you feel that need to escape, Terra H will be ready.
TYRE CLEARANCE
Terra can be mounted with 700c x 45 tyres for speed and efficiency on dirt roads, or with 650b x 50 treads for extreme durability and high-volume comfort if you need a bit more traction.
DRIVETRAIN COMPATIBILITY
Designing our frame from the ground up gave us the opportunity to tackle a problem which exist in many gravel frames. Namely giving a range of drivetrain options without compromising tyre clearance.

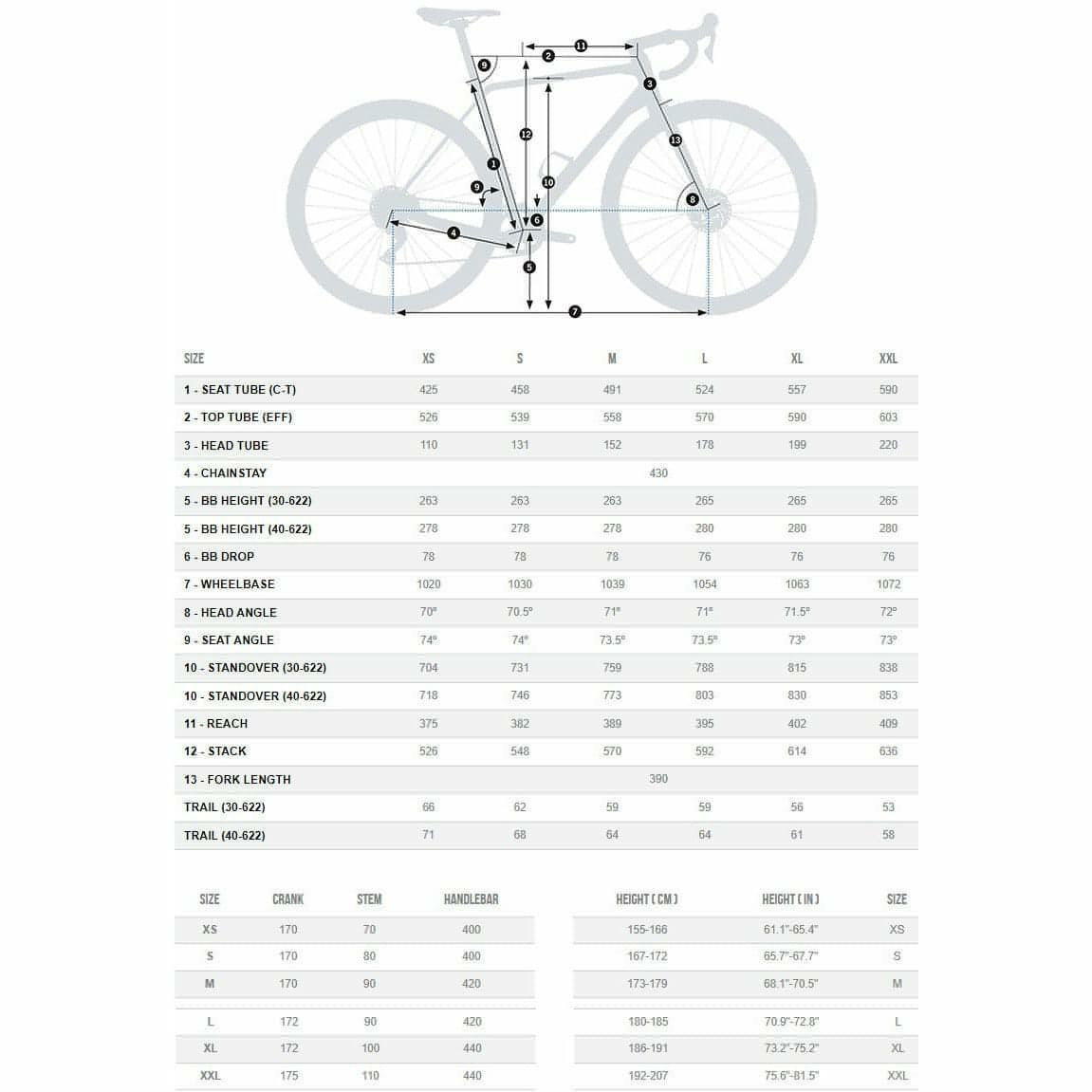

GRAVEL GEOMETRY
Terra offers a completely new gravel design with gravel specific geometry. We have worked hard, using all our experience from both Road and MTB, to deliver a balanced ride, with precise handling and maximum control.
Features:
- Orbea Terra Hydro disc, hydroformed triple butted aluminium frame
- Orbea Terra OMR carbon disc fork, full carbon steerer
- Shimano GRX 600/810 drivetrain 2x11 Drivetrain
- Shimano RX400 Hydraulic Disc
- Carbon Seatpost
Product Code | N14005D8 |
---|---|
Brand | Orbea |
Gender | Unisex |
Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system |
Fork | Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1 |
Shifters | Shimano ST-RX600 |
Derailleur (Front) | Shimano FD-RX810 |
Derailleur (Rear) | Shimano RD-RX810 |
Brakes | Shimano RX400 Hydraulic Disc |
Crankset | Shimano GRX RX600 30x46t |
Cassette | Shimano 105 R7000 11-34t 11-Speed |
Chain | Shimano HG 601 |
Hub Front | 12x100mm |
Hub Rear | 12x142mm |
Tyres | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c |
Handlebar | OC Gravel GR31-R, Rise 15, Reach 70, Drop 110 |
Stem | OC Road Performance RP21, -6º |
Headset | FSA 1-1/2" Integrated Aluminium Cup |
Saddle | Prologo Akero AGX STN size 155mm |
Seatpost | OC2 Carbon 27.2 Offset 20 |
Pedal | Pedals not included with this bike but can be purchased separately here |
Wheel Size | 700c |
Number of Gears | 22 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-4 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
