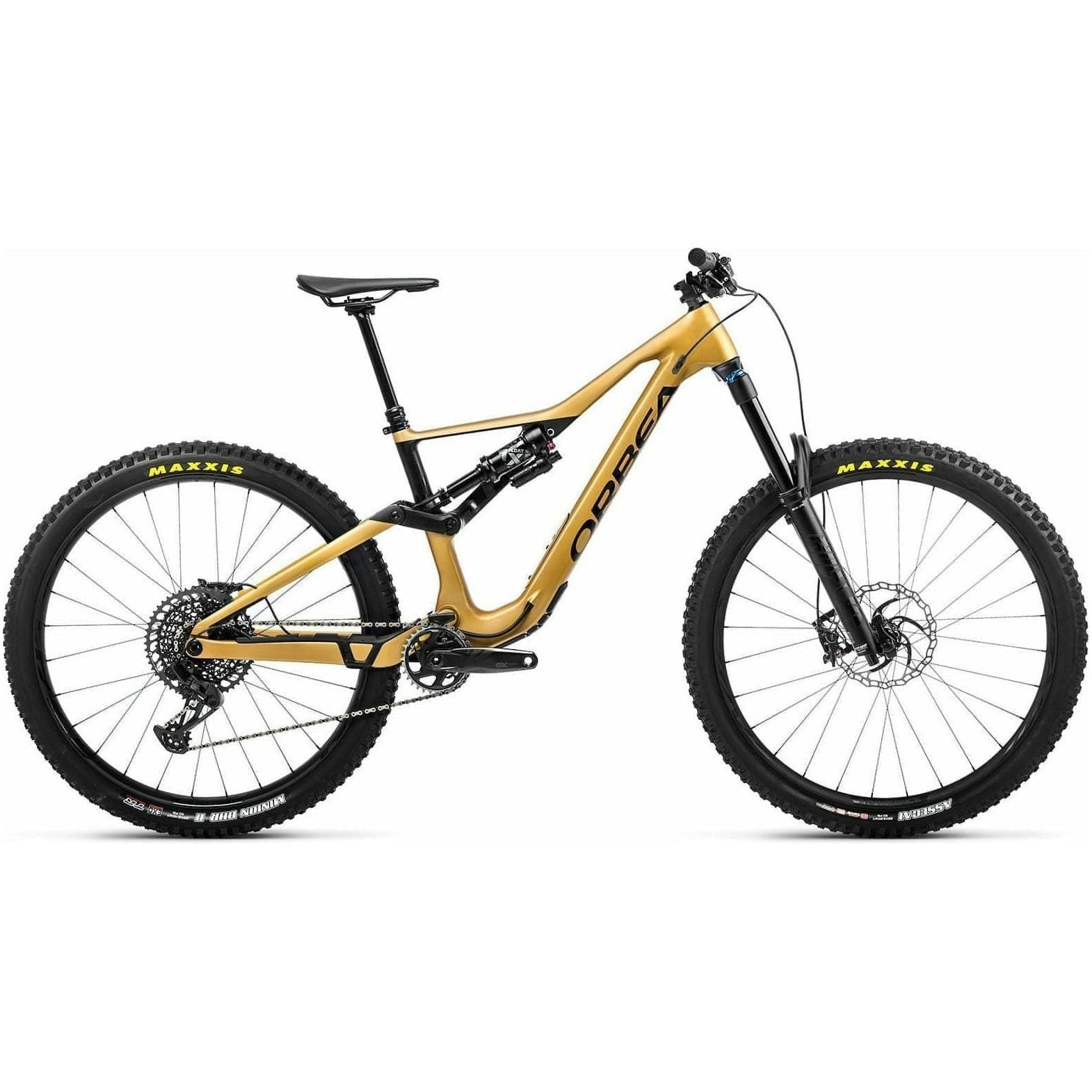

Orbea Rallon M10 Carbon Mountain Bike 2022 - Golden Sand
It’s the difference between the tentative first go of the year and the ripping third lap of a midsummer day. It’s the ease of knowing your suspension is dialed. It’s a boost of confidence, speed and control when a bit more of any could make a winning formula.
Enduralin is the extra bit of fun that turns a good ride into a great one – the shouting of the crowd, a flow state of euphoria, cowbells, chainsaws, accelerated reaction time and enhanced perception.
It’s the difference between a Good Time and All-Time.
LONGER TRAVEL WITH NEW KINEMATICS
Rallon gets a bump in travel to 160mm with a redesigned linkage assembly. A higher starting leverage ratio improves early stroke sensitivity, while the progressive rate increases from 8% to 20% to provide more bottom-out support.
Frame geometry remains unchanged, even with greater travel, and the addition of a 170mm Fox 38 fork gives Rallon a boost of Enduralin with a new 64.5º head angle
Rallon's concentric boost suspension, provides unique freedom to our engineers to finely design the kinematics so that pedalling efficiency, small bump sensibility, suspension progressivity and rear system stiffness to weight ratio can be independently optimized.
A high main pivot point provides minimum pedalling energy losses at the same time the seat stays and linkage positioning ensure just the right progressivity for outstanding bumps absorption and ultimate grip and control.
Orbea Monocoque Race (OMR) fames add high modulus and high strength fibers to a standard layup to improve stiffness-to-weight ratios.
Bladder molding with EPS forms and PU headtube and bottom bracket inserts stop wrinkling and unconformities in critical zones, allowing less carbon to be used while maintaining strength.
Advanced Dynamics is at the heart of every Orbea suspension bike. It is a computer-based modeling process we developed in conjunction with CEIT (Centro de Estudios e Investigaciones Tecnológicas) that allows us to virtually test and fine-tune our suspension platforms.
Using a vast database of shock tunes and component behaviors we can study a design under a simulated rider that exerts forces on the pedals, saddle and handlebars.

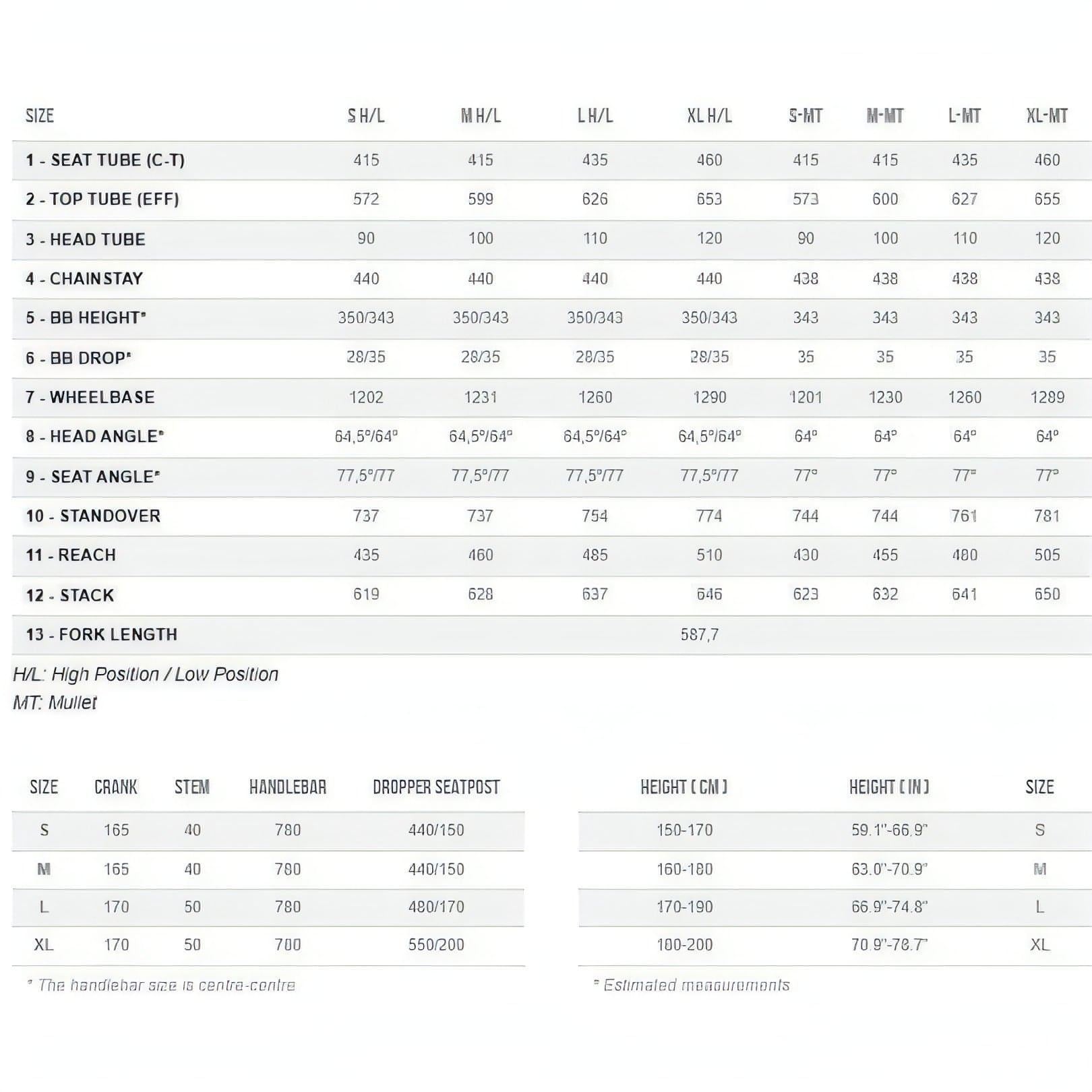

PURE ENDURO GEOMETRY
- Slack head angle
- Long cockpit
- Adjustable geometry
- Long wheelbase
- Steep seat angle
- Low bottom bracket
- Short chainstays
- Orbea Monocoque Race Carbon Frame
- Fox 38 Float Performance 170
- Fox FLOAT X Performance 2-Position Evol
- SRAM GX 12sp Drivetrain
- OC MC20 Mountain Control Dropper
- Race Face Turbine-R30 Wheelset
|Frame||Orbea Monocoque Race Carbon. Advanced Dynamics 160mm suspension technology. 29" wheels.Concentric Boost 12x148 rear axle. Pure Enduro geometry. Internal cable routing. ISCG05|
|Fork||Fox 38 Float Performance 170 Grip 3-Position QR15x110|
|Rear Shock||Fox DPX2 Performance 3-Position Evol custom tune 230x60mm|
|Shifters||SRAM GX Eagle Lunar|
|Derailleur (Rear)||SRAM GX Eagle Lunar|
|Brakes||Shimano XT M8120 Hydraulic Disc|
|Crankset||SRAM GX Eagle Dub Lunar Boost 32t|
|Cassette||SRAM XG-1275 Eagle 10-52t 12-Speed|
|Chain||SRAM GX Eagle 12-Speed|
|Hub Front||Race Face TURBINE-R30 TLR 15/110mm CL|
|Hub Rear||Race Face TURBINE-R30 TLR 12/142mm CL|
|Rims||Race Face TURBINE-R30 TLR|
|Handlebar||Race Face Aeffect 35 20mm Rise 780mm|
|Stem||Race Face Aeffect R 35mm interface|
|Headset||Acros Alloy 1-1/8 - 1-1/2" Integrated|
|Saddle||Fizik Taiga S-alloy rail|
|Seatpost||OC MC20 Mountain Control Dropper, 31,6mm w/ Shimano SL-MT500 I-Spec EV|
|Pedal||Pedals not included with this bike but can be purchase separately here|
|Wheel Size||29 inch|
|Number of Gears||12|
Ready to rideEvery bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
This process has a lead time of 7 working days. Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included. Please note: Some bikes are not supplied with pedals. Manufacturers don’t know if you want flat or clipless pedals - rather than send the bike with the wrong type, they leave the choice for you to make.
Making sure you are homeOnce fully checked and boxed, we will contact you to book a delivery date. Our bikes are despatched on a next working day service (excludes weekends & bank holidays) for UK mainland orders, or a two day service to Northern Ireland and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking DeliveryAny mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First ServiceAfter a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike ServicingBicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
