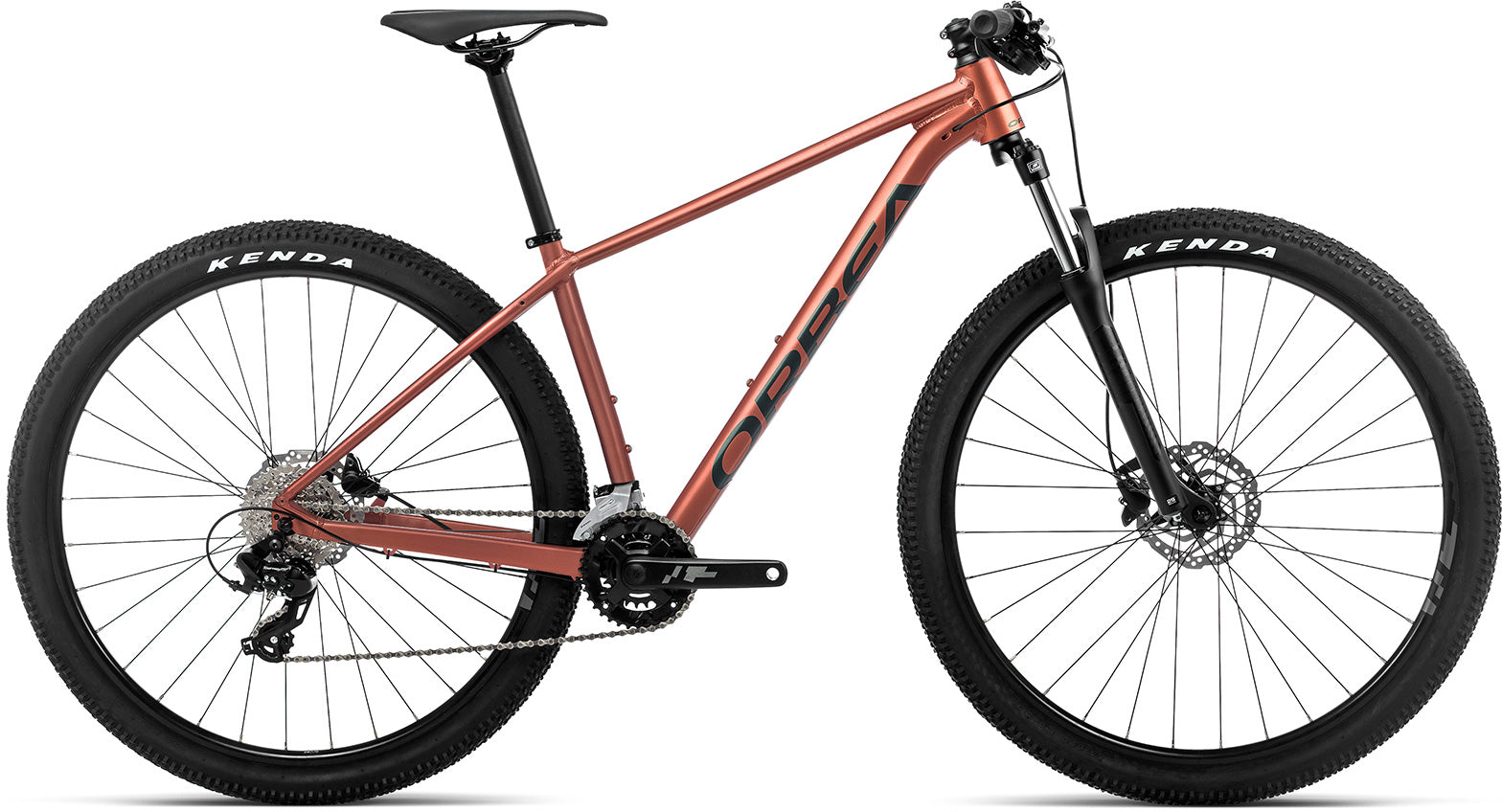

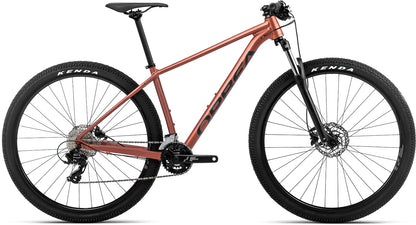

A lifetime of mountain biking begins with a first. The right bike will join you on new adventures and never limit the size of your rides. Thanks to its advanced aluminum frame, Onna is the ideal companion for any cyclist who is starting to fall in love with mountain biking.
UNLIMITED ADVENTURES
Onna is ready to take on any challenge, on any trail. Face them confidently with a bike that’s ready to ride. When you purchase your Onna, you’ll receive a free bike tune at the store you bought it from, so all you need to do is focus on the fun.
WHERE WILL IT TAKE YOU?
Exploring your first trails can be the beginning of a life full of adventures.
DROPPER POST READY
Onna is fully compatible with internally routed 27.2mm dropper posts, so you will be ready for whatever trails the future holds.
HYDRAULIC DISC BRAKES
Post mount 160mm hydraulic disc brakes on every Onna.
THREADED BOTTOM BRACKET
Threaded bottom brackets offer low maintenance are easily replaceable by the home mechanic.
TAPERED HEADTUBE
A tapered headtube and fork steerer put strength and rigidity where they’re needed while trimming weight with alloy steerer tubes and offering a wider selection of quality forks.
QUICK RELEASE AXLES
Onna comes with QR axles as standard.
INTERNAL CABLE ROUTING
Internal Cable Routing is carefully guided along the best path behind the headtube with no rub or rattle.
RACK MOUNTS
The forged dropouts offer secure mounting points for a wide variety of racks.
KICKSTAND
The left chainstay of the bike has an integrated mounting point for a kickstand.
Features:
- Orbea Onna Alloy Frame
- SR Suntour XCE 28 Coil 100mm
- Shimano MT200 Hydraulic Disc Brakes
- 2x8 Drivetrain
Product Code | N20717NA |
---|---|
Brand | Orbea |
Gender | Unisex |
Frame | Orbea Onna Alloy, Dropout 9x135, BSA BB, Internal cable routing |
Fork | SR Suntour XCE 28 Coil 100mm QR |
Shifters | Microshift TS38 |
Derailleur (Front) | Shimano M315 31.8mm |
Derailleur (Rear) | Shimano Tourney TX800 |
Brakes | Shimano MT200 Hydraulic Disc |
Crankset | Alloy forged 22x36t 9S |
Cassette | Sun Race CSM66 11-34t 8-Speed |
Chain | KMC X8 |
Hub Front | Mach1 ER20 |
Hub Rear | Mach1 ER20 |
Rims | Mach1 ER20 19c |
Tyres | Kenda K1153 2.35" 22TPI |
Handlebar | Alloy Flat 31.8mm 720mm |
Stem | Alloy 31.8mm interface 7º |
Headset | 1"-1/8 Semi-Integrated |
Saddle | Essax Adv soft135mm for Orbea |
Seatpost | Alloy 27.2 Offset 0 |
Pedal | VP-537 Black |
Wheel Size | 29 inch |
Number of Gears | 16 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-4 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
