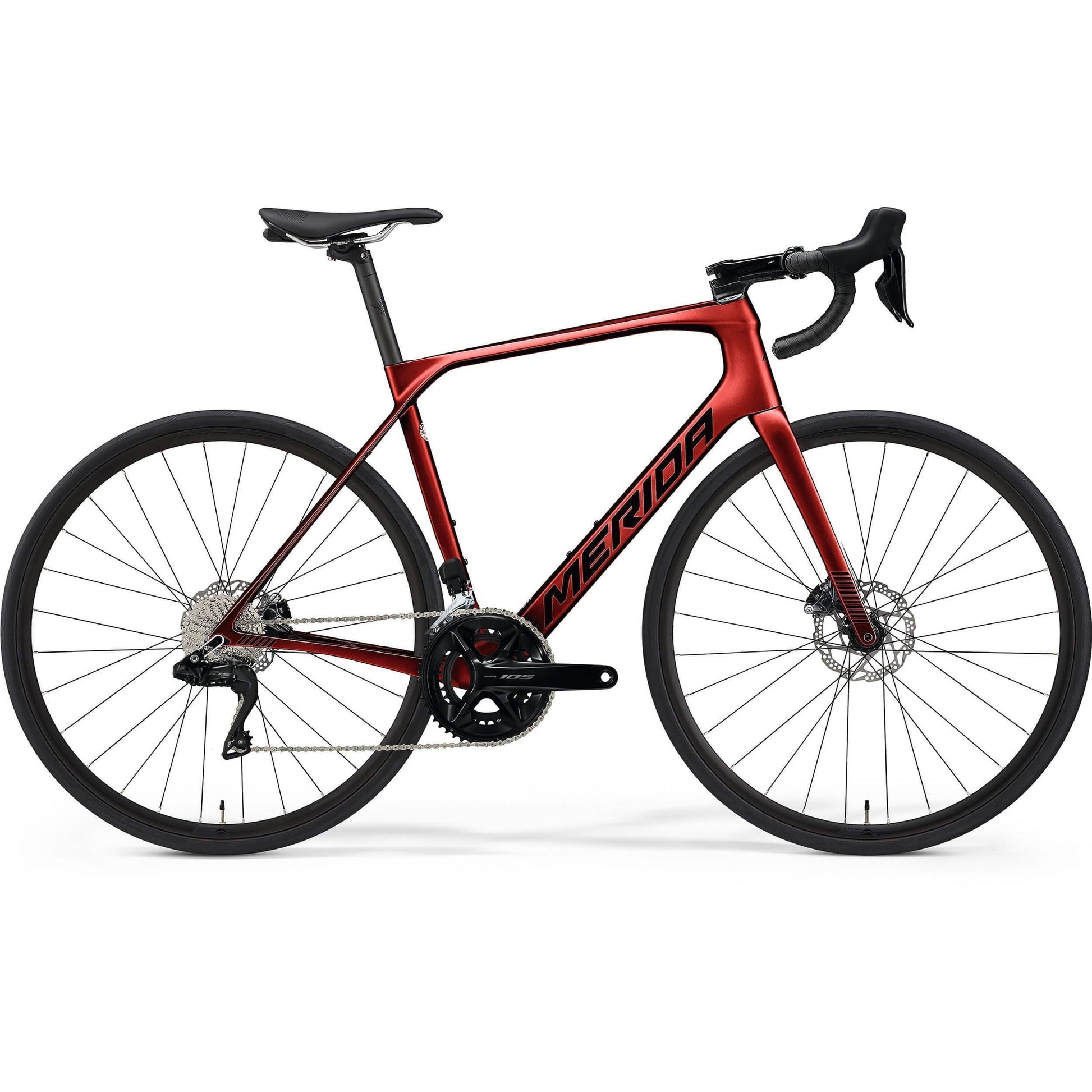

Sitting between the Silex and Scultura in our road range, the Scultura Endurance is aimed at tarmac adventure riding.

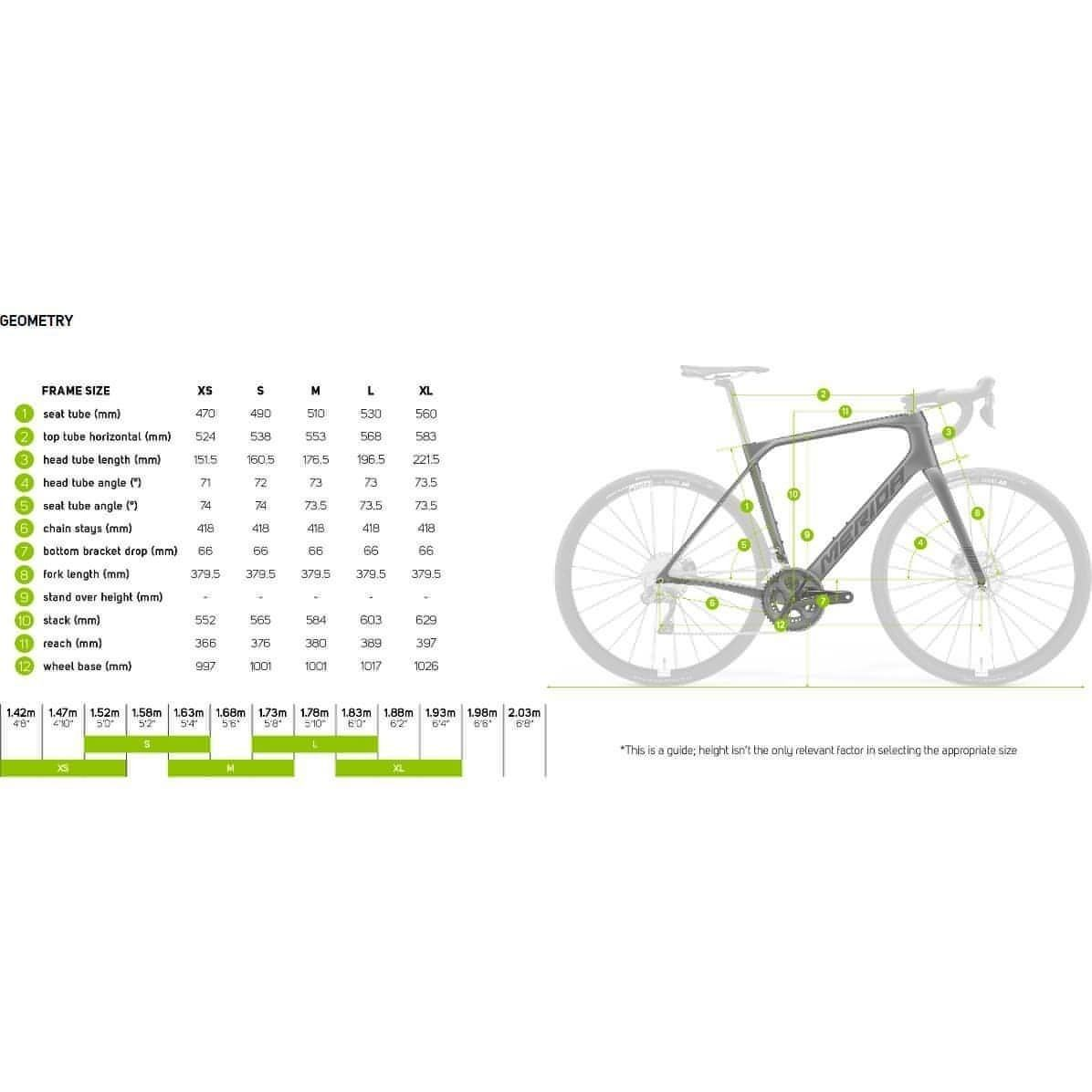

The Scultura Endurance geometry is perfectly suited to riders who want to enjoy long hours in the saddle while being comfortable and relaxed on the bike.
Endowed with a modern frame design and comfort-orientated geometry the Scultura Endurance has a longer head tube creating a more upright and comfort-orientated seating position. The slacker head tube angle and slightly longer wheelbase give the bike more stability at speed.
To increase frame stiffness and steering precision the Scultura Endurance uses 12mm bolt through axles and a full carbon tapered fork.
There’s plenty of tyre clearance (up to 35c, or 32c if you are running mudguards), larger volume tyres can be run at lower pressures and provide more comfort even on the most pothole littered country lanes.
We've used plenty of neat touches such as routing shifting and brake cables through the headset to declutter the cockpit. Even the seat clamp is hidden and the rear seat stay bridge can be removed if it isn’t used to mount mudguards.
All Scultura Endurance models are equipped with powerful hydraulic disc brakes. Calipers are mounted via the flat mount standard for a neat, flush fit. Calipers sit on top of CNC'd aluminium Disc Cooler fins which reduce operating temperatures by up to 35%.
Features:
- Comfortable, confidence inspiring geometry
- Carbon frame and fork
- 2 x 12 Shimano 105 Di2 transmission
- Maxxis Detonator 32c tyres
- Shimano 105 chainset
- Carbon seat post
Product Code | P253 |
---|---|
Brand | Merida |
Gender | Unisex |
Frame | SCULTURA ENDURANCE CF3 material: carbon 700x35C max./ 700x32C (with fender) max. wheelsize 100x12/ 142x12mm axle standard BB86 bottom bracket standard |
Fork | SCULTURA ENDURANCE CF3 DISC material: carbon 700x35C max. wheelsize |
Shifters | Shimano 105 disc Di2 |
Derailleur (Front) | Shimano 105 Di2 |
Derailleur (Rear) | Shimano 105 Di2 |
Brakes | Shimano 105 Hydraulic disc |
Crankset | Shimano 105 FCR7100, 50-34 teeth 165 mm-XXS, 170 mm-XS/S, 172.5 mm-M/L, 175 mm-XL |
Cassette | Shimano CS-R7100 11-34 teeth 12 speed |
Chain | Shimano CN-M6100-12 |
Hub Front | Merida Expert SL VP CLK170F 100x12mm width front hub 28 spoke holes Centerlock |
Hub Rear | Merida Expert SL VP CLK270R 142x12mm width rear hub 28 spoke holes Centerlock |
Rims | MERIDA EXPERT SL 17mm inner width 22mm height material: aluminium Tubeless ready (tubeless tape and valves not included) |
Tyres | Maxxis Detonator 700x32C fold |
Handlebar | MERIDA EXPERT SL material: aluminium 380mm (XXS) 400mm (XS-S) 420mm (M-L), 440 (XL) |
Stem | FSA SMR ACR material: aluminium -6° stem angle 90 mm-XXS/XS, 100 mm-S/M, 110 mm-L, 120 mm-XL |
Headset | FSA ACR |
Saddle | MERIDA EXPERT SL V-mount incl. MERIDA minitool |
Seatpost | MERIDA EXPERT CC 27.2mm diameter 15mm setback Carbon |
Pedal | Pedals not included with this bike but can be purchased separately here |
Wheel Size | 700c |
Number of Gears | 24 |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-4 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
