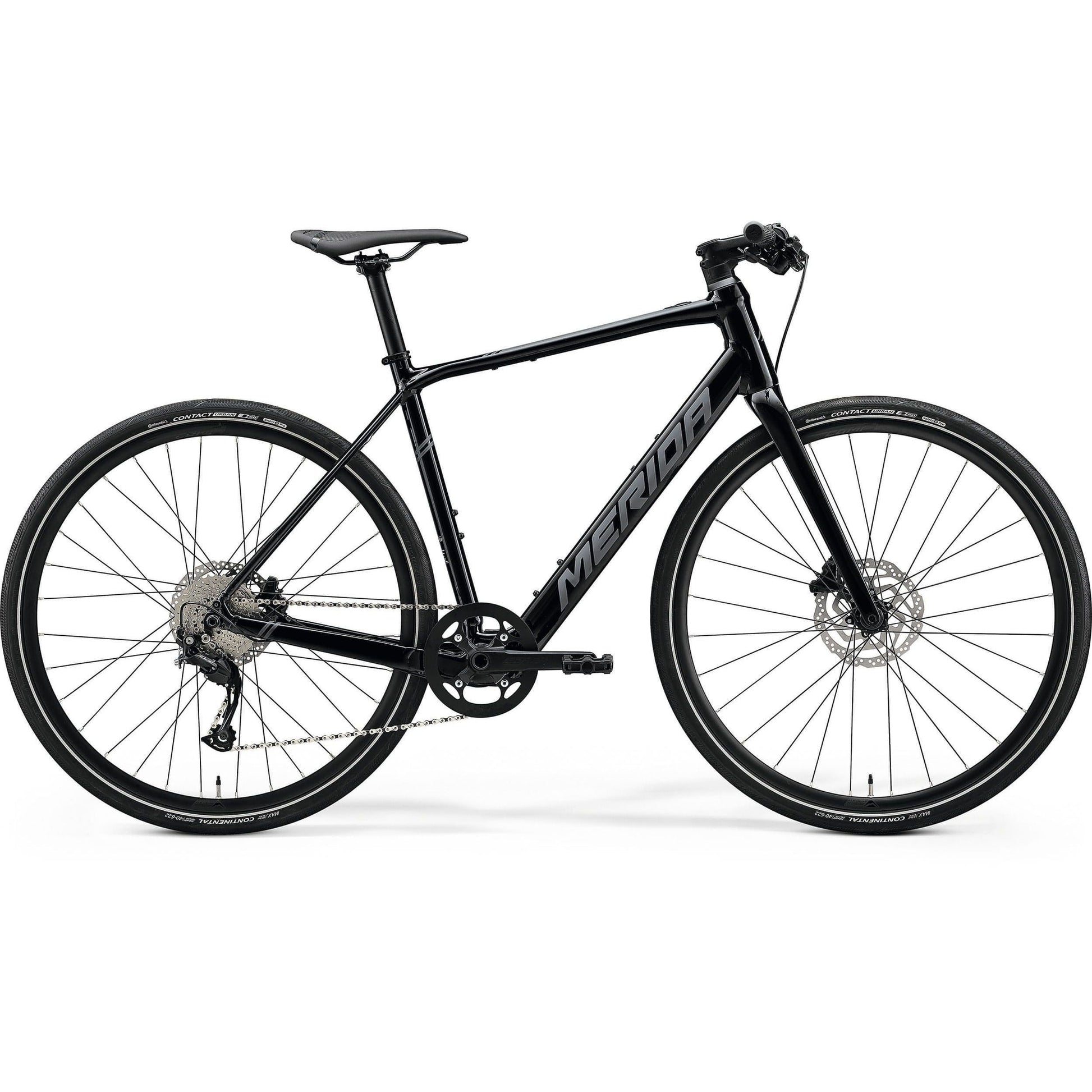

A hidden gem: a sleek, efficient eBike perfect for leisure and commuting
The regular Speeder is a fast efficient commuting or leisure bike. The addition of a power unit is almost unnoticeable when the bike's seen in profile. The smooth power delivery and drag free motor help preserve your energy, making commuting far more appealing.
Fully equipped with kickstand, mudguards, rack and Lezyne lights you are good to go in all weathers. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit nice and neat.
The regular Merida Speeder is a fast efficient commuting or leisure bike.
The addition of a power unit is almost unnoticeable when the bike's seen in profile. The smooth power delivery and drag free motor help preserve your energy, making commuting far more appealing.
MAHLE's ebikemotion system uses a 40Nm rear hub motor powered by a fully integrated 250Wh battery hidden in the downtube.
The low system weight combined with a carbon fork and sophisticated aluminium frame means the bike also feels lively without power assistance. There is almost no drag at all from the motor when it's not engaged.
The system has an iWoc button for controlling support levels and a sophisticated app provides an opportunity to adjust the riding feel as well as offering post-ride analysis features.
The frame has mounts for mudguards and rack and a neat hidden kickstand mount. Cable routing is through the frame with cables entering through a specific headset cap to keep the cockpit neat.
- Prolite 66 Triple Butted Aluminum
- HFS - Hydro Forming System
- X-Taper Headtube
- Smooth Welding
- Internal Cable Routing
- Down Tube Exit
- Fender-Mount
- Kickstand-Mount
- Carrier-Mount
- Wire Port
- Lightweight with fast rolling 700c wheels
- MAHLE ebikemotion 40Nm hub motor
- Integrated 250Wh battery
- Carbon fork
- Shimano Alivio 1 x 9 drivetrain
- Shimano hydraulic disc brakes
Product Code | N902 |
---|---|
Brand | Merida |
Gender | Unisex |
Frame | Lite - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards |
Fork | Mission CX CF3; carbon. Max. tyre size: 700 x 42c |
Shifters | Shimano Alivio M3100 |
Derailleur (Rear) | Shimano Alivio M3100; SGS |
Brakes | Shimano MT-200 / UR300; 2 piston hydraulic disc brake caliper |
Crankset | Merida Comp TK; 42 tooth chainring with 165 mm-XS, 170 mm-S/M/L/XL crank |
Cassette | Shimano CS-HG201; 11-36 teeth; 9 speed |
Chain | KMC e9S |
Hub Front | VP CLK170F; 100x12mm; 28 spokes; Center lock |
Hub Rear | MAHLE X35+ Hub motor; 40Nm |
Tyres | Continental Contact Urban; 700 x 40c; wire bead |
Handlebar | Merida Expert CC; aluminium; 620mm wide; Flat |
Stem | Merida Expert IR; aluminium; 31.8mm diameter; 5 degree rise. Stem length: 80mm (XS), 90mm (S), 100mm (SM/ML), 110mm (L/XL) |
Headset | VP-MH-P16 |
Saddle | Merida Comp SL; V-mount |
Seatpost | Merida Expert; aluminium; 30.9mm diameter; in-line |
Pedal | Pedals not included with this bike but can be purchase separately here |
Wheel Size | 700c |
Number of Gears | 9 |
Motor | MAHLE X35+ Hub motor; 40Nm |
Battery | MAHLE B1-D; 250Wh |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 5-7 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
