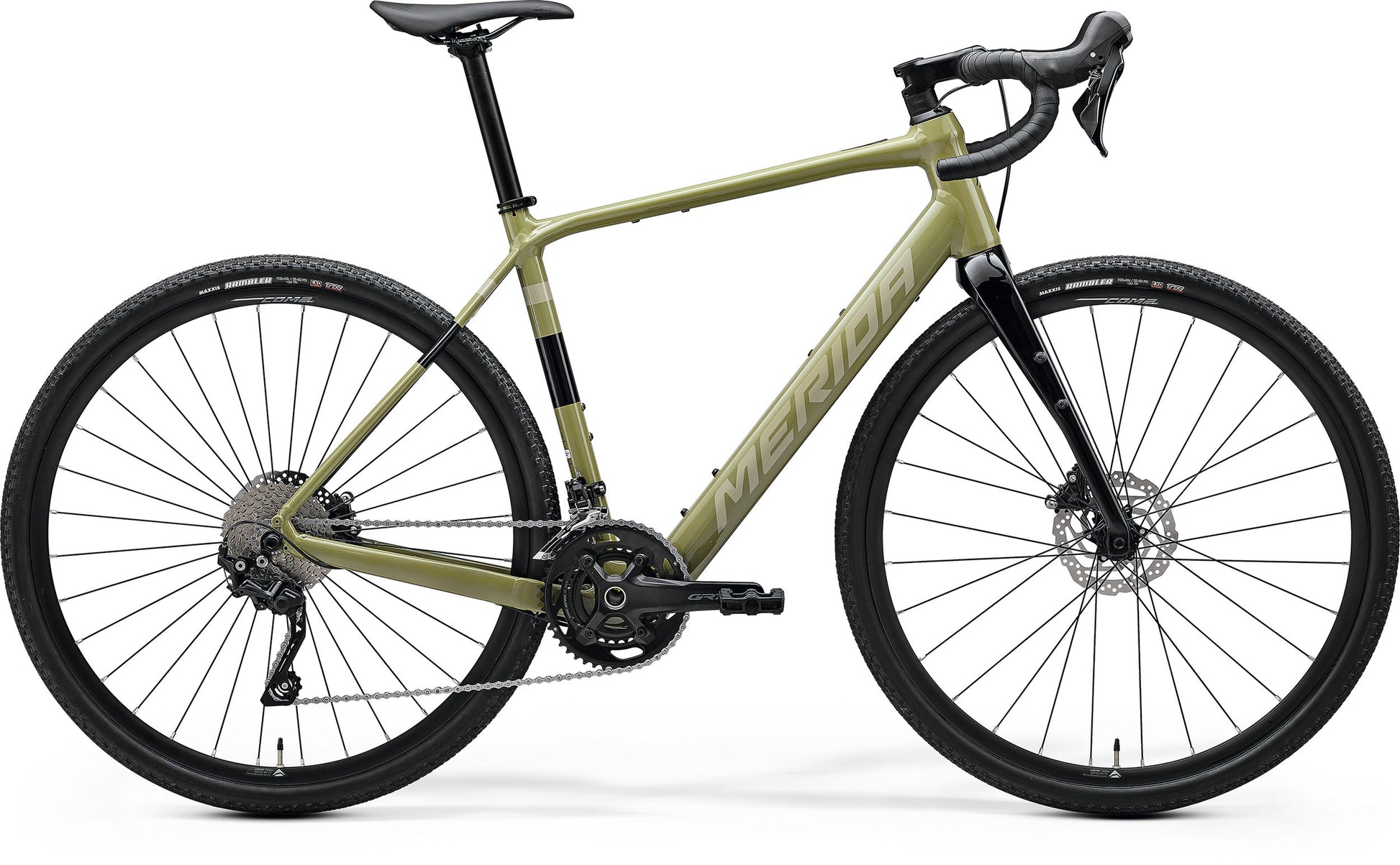

Sometimes a small push is all that's needed to open up a whole new world of exploration. The eSILEX 400 pairs a sleek, lightweight frame with versatile gravel tyres on 700c rims to the helping hand of the latest MAHLE ebikemotion X30 hub drive motor and a 250 Wh battery to help expand your riding horizons. A fully-featured frame and carbon fork with plenty of mounts is ideal for overnight bikepacking trips or smaller adventures, while the smooth shifting and powerful braking of the Shimano GRX groupset with double chainset makes for reliable companions, on or off the road.
If you are often looking for the off-road alternative when you are out on your bike or simply enjoy exploring the path unknown, then the eSILEX might be the perfect assisted bike for you. The latest rear-hub MAHLE X30 system with integrated battery offers a neutral support level whenever your journey requires some e-motor assistance. You can even use an externally mounted 208 Wh MAHLE Range Extender to boost range. Depending on where you want to take it, the eSILEX is available in the more rugged 650b or the more fast-rolling 700c set-up. Both versions come with gravel/off-road tyres for extra grip. A large number of fixing points on the frame as well as the fork, turn the eSILEX into an adventure rig without any fuss.
Features:
- Merida Aluminium Lite II Frameset
- Shimano GRX600 2x10spd Drivetrain
- Shimano GRX Hydraulic Disc Brakes
- Mahle X30 Drive Unit
- Mahle ix250 250Wh Battery
| Product Code | Q905 |
|---|---|
| Brand | Merida |
| Gender | Unisex |
| Frame | Lite II - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max. tyre size 700 x 45c without mudguards, 700 x 42c with mudguards, 27.5 x 47c |
| Fork | Merida Silex CF2; Tapered; carbon, Max. tyre size: 700 x 42c without mudguards, 700 x 35c with Mudguards. Max 27.5" x 50c |
| Shifters | Shimano GRX400 |
| Derailleur (Front) | Shimano GRX400 |
| Derailleur (Rear) | Shimano GRX400 |
| Brakes | Shimano GRX400 2 piston hydraulic disc brake caliper |
| Crankset | Shimano GRX600; 46-30 tooth chainset with 170 mm-XS/S/M, 175 mm-L/XL crank |
| Cassette | Shimano CS-HG50; 11-36 teeth; 10 speed |
| Chain | KMC e10 |
| Hub Front | Shimano HB-TC500; 100 x 12mm; 28 Spokes; Centerlock |
| Hub Rear | Mahle X30 Hub motor, 40Nm |
| Rims | Merida Comp SL; 17mm inner rim width; 22mm rim depth; aluminium |
| Tyres | Maxxis Rambler 700 x 40c; Kevlar bead, folding; EXO |
| Handlebar | Merida Expert GRII; aluminium; 400mm (XS/S), 420mm (M), 440mm (L/XL) |
| Stem | Merida Team CC III; aluminium; 31.8mm diameter; -6 degree rise; length: 80mm all sizes |
| Headset | Merida 8158 |
| Saddle | Merida Comp SL; V-mount |
| Seatpost | Merida Expert; aluminium; 30.9mm diameter; in-line |
| Pedal | VP Components - VPE-891 |
| Wheel Size | 700c |
| Number of Gears | 20 |
| Remote System | Mahle iWoc ONE |
| Motor | Mahle X30 Hub motor, 40Nm |
| Battery | Mahle ix250Wh Battery Pack |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-3 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
