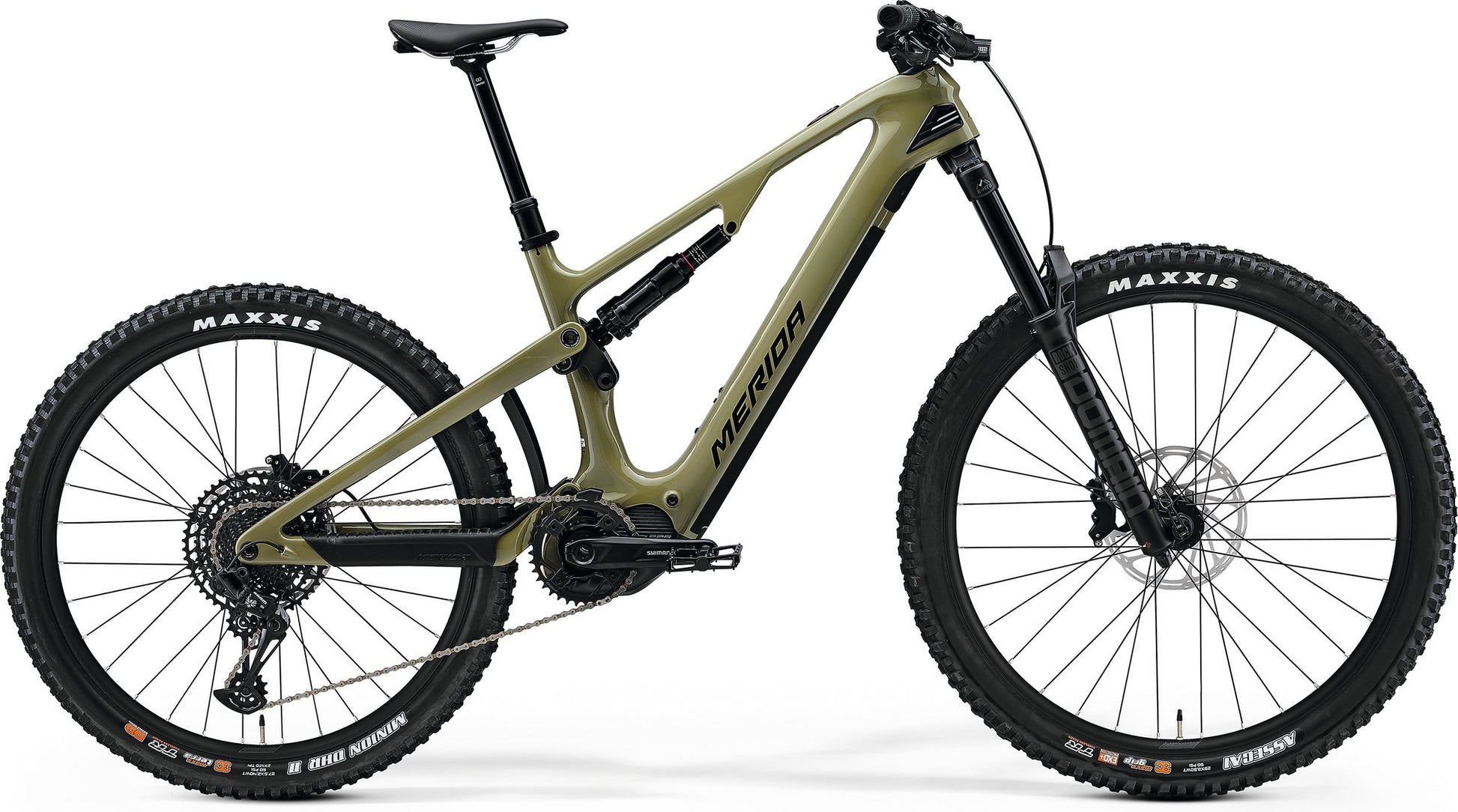

eONE-SIXTY - AWARD WINNING POWER
A hard-hitting enduro-ready eBike that's wowed the press worldwide.
With the new eOne-Sixty, the next descent is always about to start. Our high level carbon frame is paired with the powerful, lightweight Shimano 85Nm EP801 motor and an integrated 600Wh battery to minimise weight. SRAM NX Eagle 12 speed Drivetrain, RockShox Domain fork and Super Deluxe Shock, Maxxis tyres, and a tubeless ready mullet wheelset.
Lightweight or full power? How about both? The new eOne-Sixty CF pairs an enduro-ready lightweight full carbon chassis with a full-support motor and a 600 Wh battery. A 360 Wh range extender is available separately so you don't have to choose between precise, playful handling, decent range or support that'll get you up the trickiest technical sections.

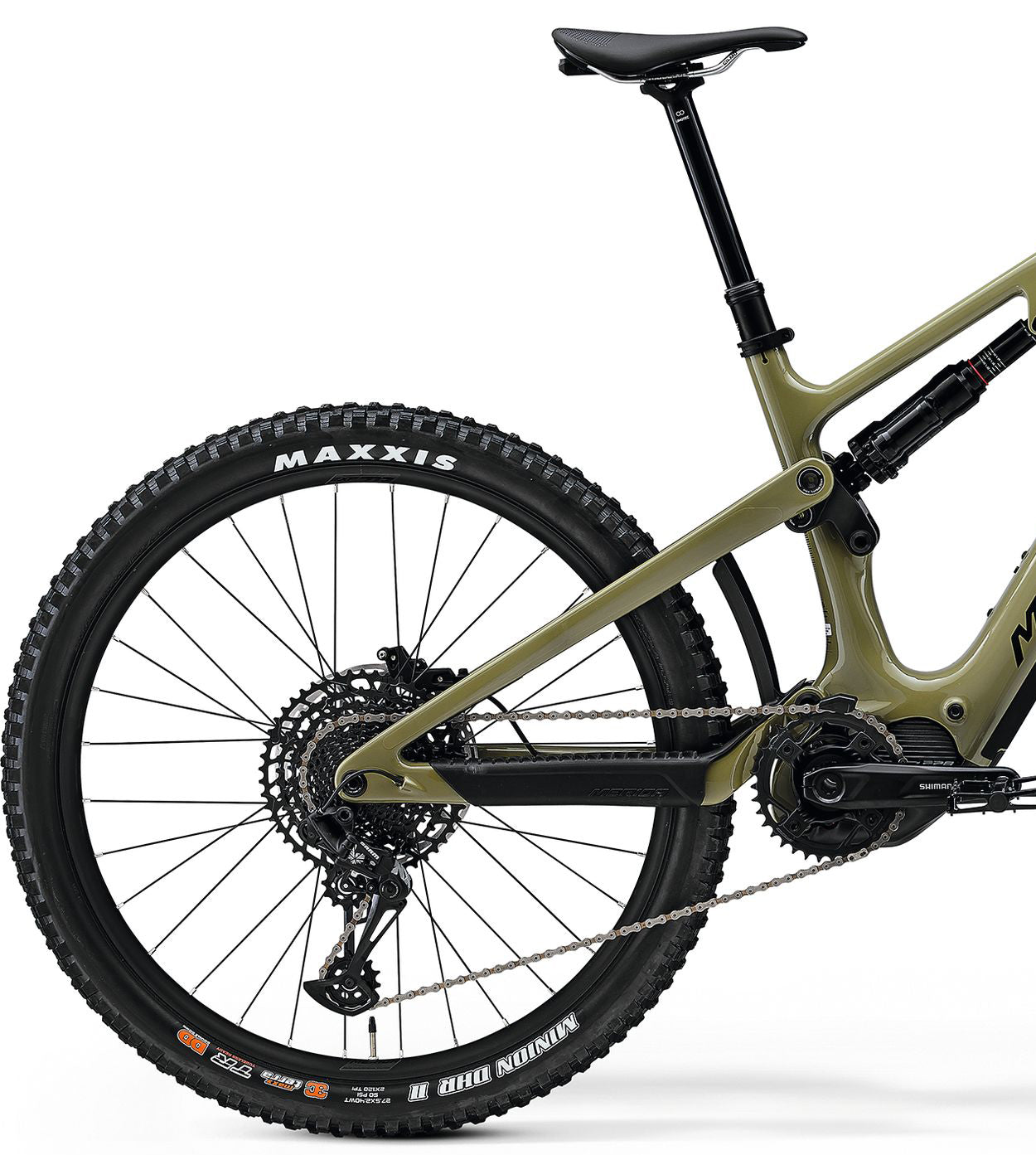

With 170 mm travel at the front and 174 mm at the rear, it's perfectly at home on a race track or hitting the trails on repeat. The award winning FAST kinematic suspension and Agilometer sizing of our regular One-Sixty enduro complement our proven e-bike heritage. Our low maintenance flexstay suspension offers size-tuned progression to maximise performance for all riders and it can be run with the latest coil shocks.
Our flip chip design enables you to run with mixed size 29" front and 27.5" rear wheels as standard or switch to a focussed full 29er setup without compromising the geometry that's been designed for the toughest enduro trails.
Thanks to our 30-230 mm travel-adjustable dropper post, you can choose between a longer frame for more stable handling or a shorter one for an agile feel - whichever suits you.
Features:
- Carbon Merida eOne-Sixty Frameset
- Rockshox Domain eMTB 170mm Travel Fork
- Rockshox Super Deluxe Rear Shock
- Sram NX Eagle 12spd Drivetrain
- Shimano Steps EP801 Drive Unit
- 600Wh Integrated Battery
- Merida Tubeless-Ready Mullet Wheelset
- Merida Expert TRII Dropper Seatpost
Product Code | P711 |
---|---|
Brand | Merida |
Gender | Unisex |
Frame | Carbon III - carbon main frame and rear triangle internal battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 29" x 2.6" |

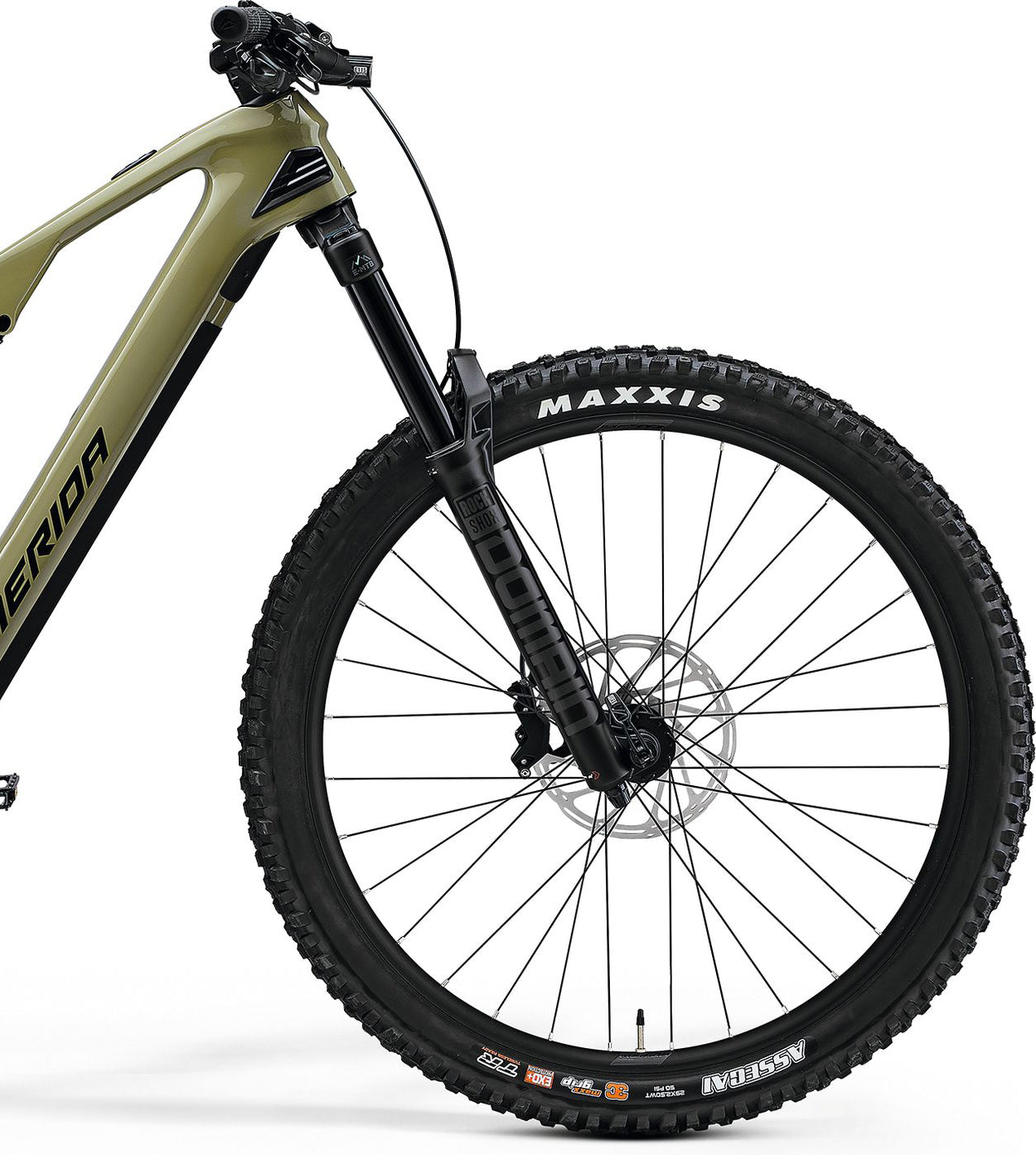

Fork | Rock Shox Domain Gold RC E-MTB; Air; 170mm travel; Tapered; 44mm fork offset; Max. tyre size 29" x 3.0" |
Rear Shock | RockShox Super Deluxe Select |
Shifters | SRAM NX Eagle 12 speed, Limotech RM10 dropper post lever |
Derailleur (Rear) | SRAM NX Eagle |
Brakes | SRAM DB8 4 piston hydraulic disc brake |
Crankset | FSA 1x Steel chainring; 36 tooth chainset with Shimano FC-EM600; 165mm length crank all sizes with MRP 1x chainguide |
Cassette | SRAM PG-1210 Eagle; 10-50 teeth; 12 speed |
Chain | SRAM SX Eagle |
Hub Front | Novatec SL-ELITE D041SB-B15; 110 x 15mm; 32 spokes; 6 bolt |
Hub Rear | Novatec SL-Team D462SB-S3S-B12-11S; 148 x 12mm; 32 spokes; 6 bolt with Merida Expert TR axle including removable 6/4mm allen key |
Rims | Merida Expert TR II; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
Handlebar | Merida Expert eTR; 780mm wide; 20mm rise |
Stem | Merida Expert eTR II; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point. |
Headset | Acros ICR Merida integrated neck w/ Blocklock |
Saddle | Merida Expert SL with V-mount; including Merida minitool |
Seatpost | Merida Expert TR II; 34.9mm diameter; in-line; XS: 125mm - S: 150mm - M/L/XL: 200mm seat post travel |
Pedal | Pedals not included with this bike but can be purchased separately here |
Wheel Size | 29 / 27.5 inch |
Number of Gears | 12 |
Remote System | Shimano SW-EM800-L |
Motor | Shimano Steps EP801; 85Nm |
Battery | Simplo Trend Power Internal Battery Gen 2; 600Wh |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-4 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
