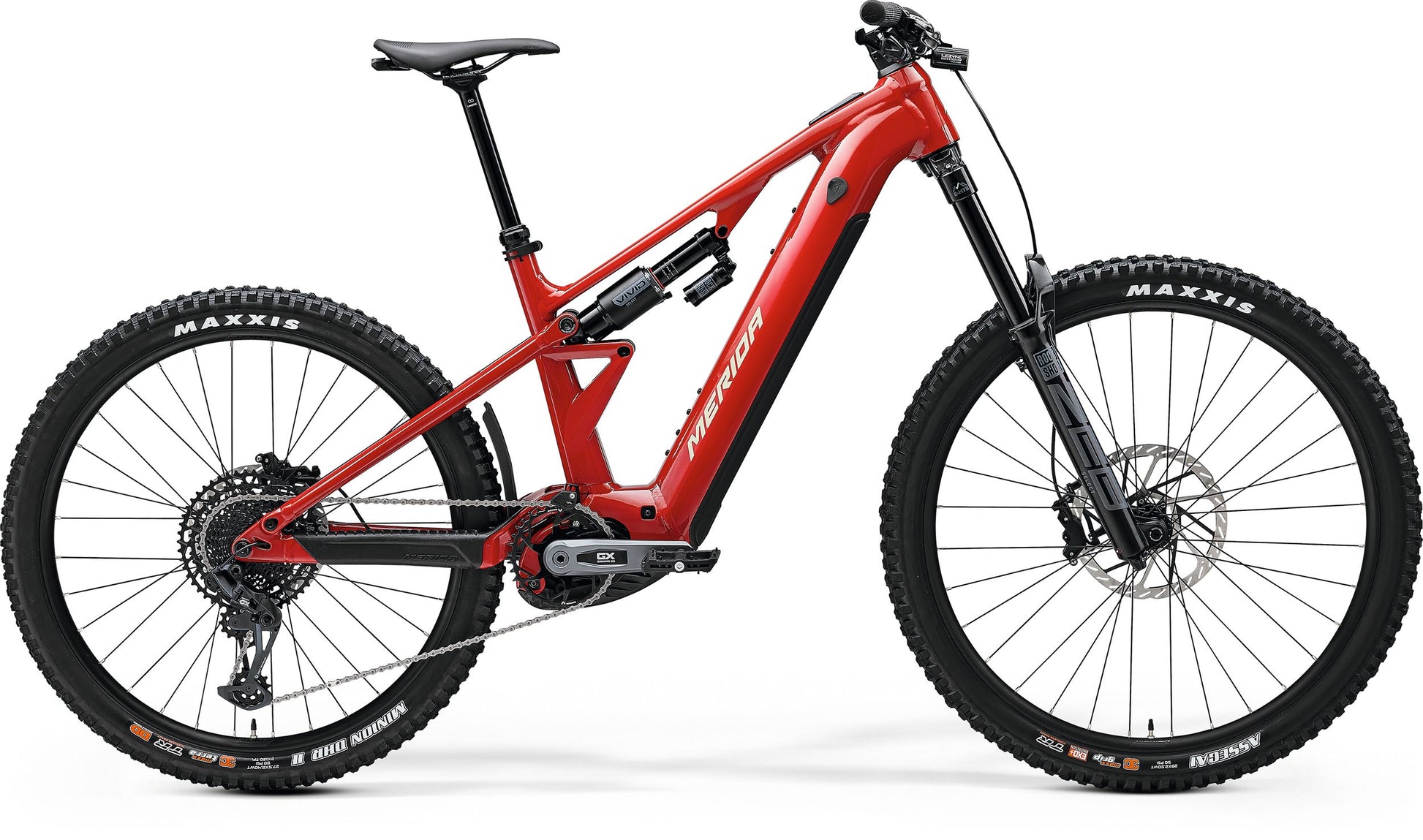

The eONE-EIGHTY 700 offers a perfect pairing of performance and price, thanks to a spec that's functional without being flash. Our tough aluminium frame serves up 180 mm of big-mountain-ready travel in an agile mixed wheel size package, while the powerful Bosch CX drive unit with 800 Wh battery means you can rip bike park laps all day long. RockShox's Zeb Select 180 mm fork and Vivid Select shock will tame anything the trail throws at you, and SRAM's GX Eagle drivetrain offers no-fuss shifting.
Calling all heavy hitters, bike park senders and big mountain brawlers, this one’s for you. The new eONE-EIGHTY has landed, and it’s ready to ride the biggest lines and burliest tracks - and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800 Wh battery and Bosch CX power.It’s our longest travel e-bike ever, with 180 mm of suspension at either end on a robust aluminium frame with a new suspension platform that builds on our award-winning FAST kinematic from the eONE-SIXTY and sends it to new heights. Add in coil shock compatibility, mixed-wheel size only setup, plus a whole host of other features and getting rowdy is where the eONE-EIGHTY starts, not finishes. Up or down, it’s ready to rock.It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, which offers powerful assistance and silent performance with 85 Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800 or 600 Wh battery - plus the option of a 250 Wh range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride, plus we’ve also got a new cover that protects from dirt, impacts and moisture - and it holds itself in place with the magic of Fidlock magnets.It’s rated for Category 5 riding too, so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty.
Features:
- Merida Aluminium Frameset
- Rockshox Zeb Select 180mm Travel Fork
- Rockshox Vivid Select Rear Shock
- Sram GX Eagle 12spd Drivetrain
- Sram DB8 Stealth 4-Piston Brakes
- Bosch Performance Line CX Drive Unit
- Bosch PowerTube 800Wh Integrated Battery
- Bosch Purion 400 Display
Product Code | Q852 |
---|---|
Brand | Merida |
Gender | Unisex |
Frame | LITE I ; all aluminium; 180mm travel; 148x12mm bolt through axle axle standard; removable intube battery; Max. tyre size 27.5” x 2,6” |
Fork | Rockshox Zeb Select eMTB; Air; 180mm travel; Tapered; 44mm fork offset; 29x2.6" max. tyre size |
Rear Shock | RockShox Vivid Select |
Shifters | SRAM GX Eagle |
Derailleur (Rear) | SRAM GX Eagle |
Brakes | SRAM DB8 Stealth 4 piston hydraulic disc caliper |
Crankset | SRAM Eagle Transmission E-MTB for BOSCH; 34 teeth. FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes |
Cassette | SRAM CS XS 1270 ; 10-52 teeth; 12 speed |
Chain | SRAM NX Eagle |
Hub Front | Shimano TC500; 15x100mm; 32 spoke; Centerlock |
Hub Rear | Shimano TC500; 12x148mm; 32 spoke; Centerlock with Merida Expert TR; including removeable lever, 6/4mm allen key |
Rims | Merida Expert TR II; 110x15 WHF; 148x12 WHR; 28mm inner rim width; aluminium; Tubeless ready (tubeless tape and valves not included); front 29"; rear 27.5" |
Handlebar | Merida Expert eTR; 780mm wide; XS,S 20mm rise ; M,L,XL 30mm rise |
Stem | Merida Expert eTR II; aluminium; 35 DSH; 0 ASD; Supernova mount. 40 mm all sizes |
Headset | Acros ICR Merida external neck with Blocklock |
Saddle | Merida Comp SL; 28% recycled material; V-mount; incl. Merida minitool |
Seatpost | Merida TEAM TR II; 34.9mm diameter; 0 mm lay back; all sizes 30-230mm travel |
Pedal | VP VP-532 |
Wheel Size | 29 / 27.5 inch |
Number of Gears | 12 |
Remote System | Bosch Mini Remote |
Motor | Bosch Performance Line CX |
Battery | Bosch PowerTube 800; 800Wh |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 3-5 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
