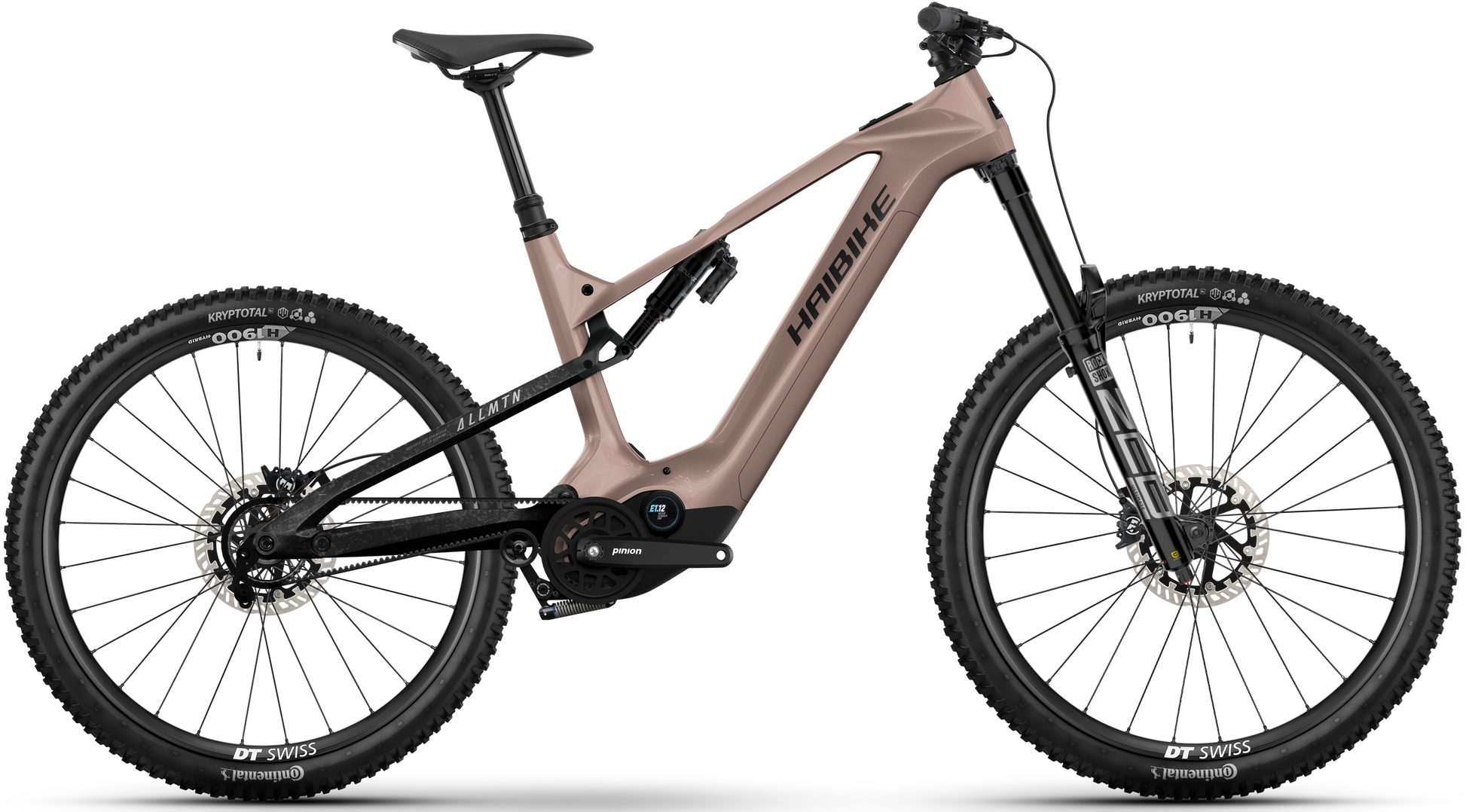

Reach the highest peaks with ultimate riding fun. Our new ALLMTN CF 11 TRN/IQ delivers just that – and even more. This full-suspension eMTB embodies “Next Level Riding” like no other eMountain bike in our range. One key feature is the fully integrated Pinion Motor.Gearbox.Unit (MGU) – an advanced drive technology that combines motor and gearbox in one housing. Supported by the mullet setup, shorter chain stays and improved kinematics with 160mm of travel front and rear, you’ll enjoy an entirely new, intuitive riding experience. And with the 800Wh battery, even the longest Alpine climbs become a breeze, while the high-quality Magura disc brakes bring you safely back down to the valley. Climbing to the highest peaks has never been this fun!
The AllMtn CF TRN/IQ stands for TRaNsmission Intelligence and combines intuitive, playful handling with state-of-the-art technology and an innovative design concept. With ultra-light carbon frames manufactured in Europe, new kinematics and an innovative shock position, it speaks a clean and radical design language and enables an intuitive next-level riding experience.

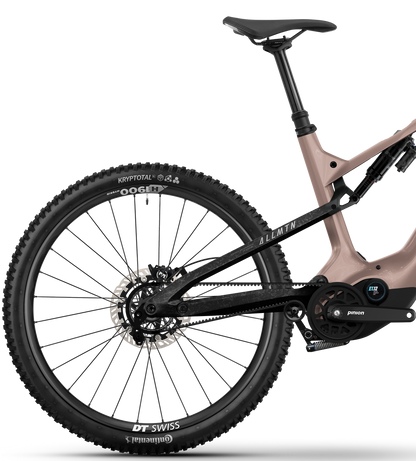

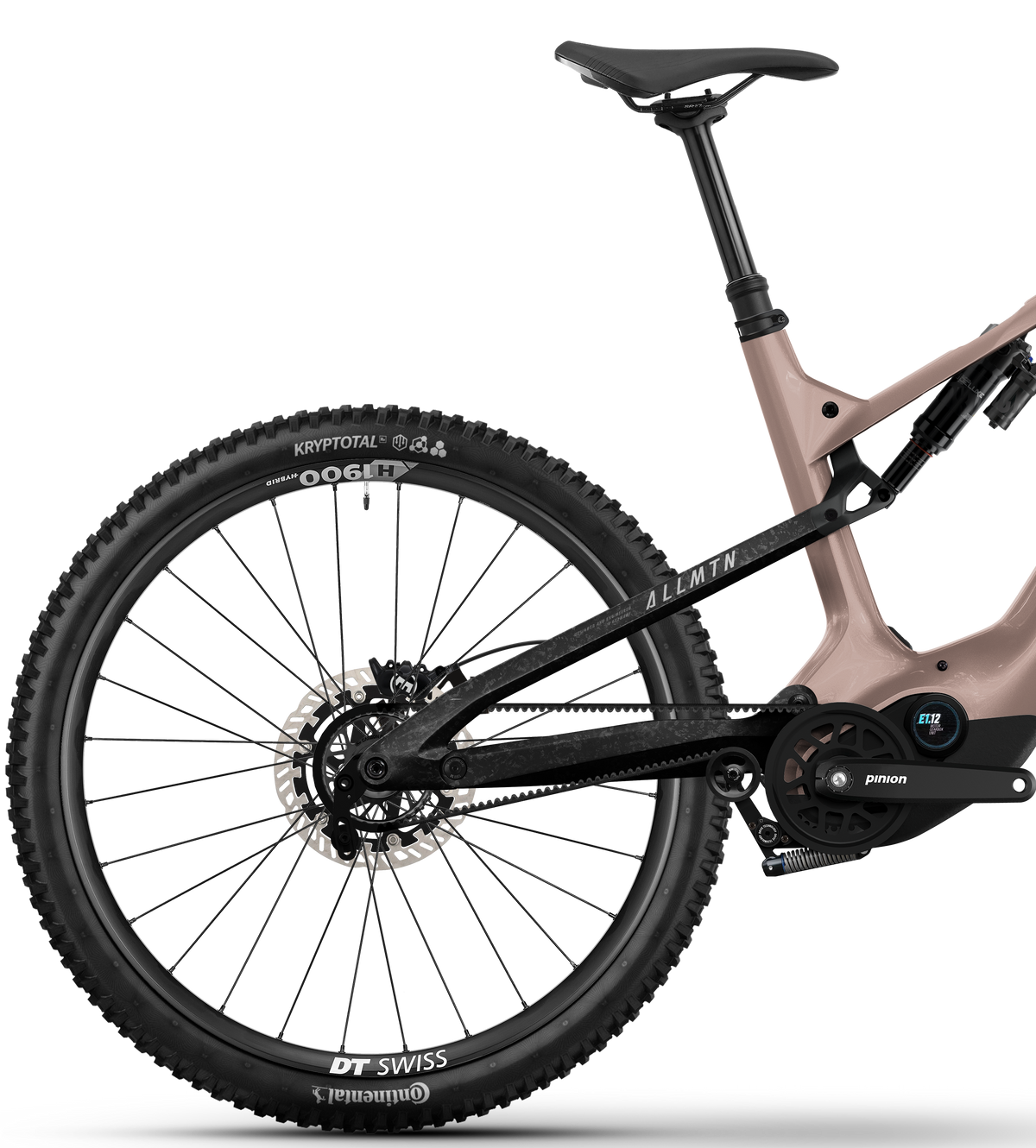

Shorter chainstays and a central centre of gravity ensure playful handling. The elimination of the rear derailleur and cassette reduces the unsprung mass with advantages in terms of handling, riding dynamics and rear triangle performance. As a result, the AllMtn TRN/IQ models bring a high level of suspension sensitivity to the trails - for maximum riding fun, comfort and more stability off-road.
The Pinion MGU combines a powerful electric motor with proven Pinion transmission technology and electric gears to create a drive system. The motor and gears are optimally matched and work together precisely. With no significant wear and only minimal maintenance (one oil change every 10,000 kilometers), the system works carefree and reliably - for more time on the saddle and trails.
Features:
- Haibike Full Carbon Frame
- Rockshox Zeb Ultimate 160mm Travel Fork
- Rockshox Super Deluxe Ultimate RCT2 Shock
- Pinion Gearbox with Gates Carbon Belt Drive
- DT Swiss H 1900 SPLINE Tubeless Ready Wheelset
- Pinion E1.12 Gearbox Drive Unit
- Pinion InTube 800Wh Integrated Battery
| Product Code | 45614540 |
|---|---|
| Brand | Haibike |
| Gender | Unisex |
| Frame | Carbon, disc brake Post Mount |

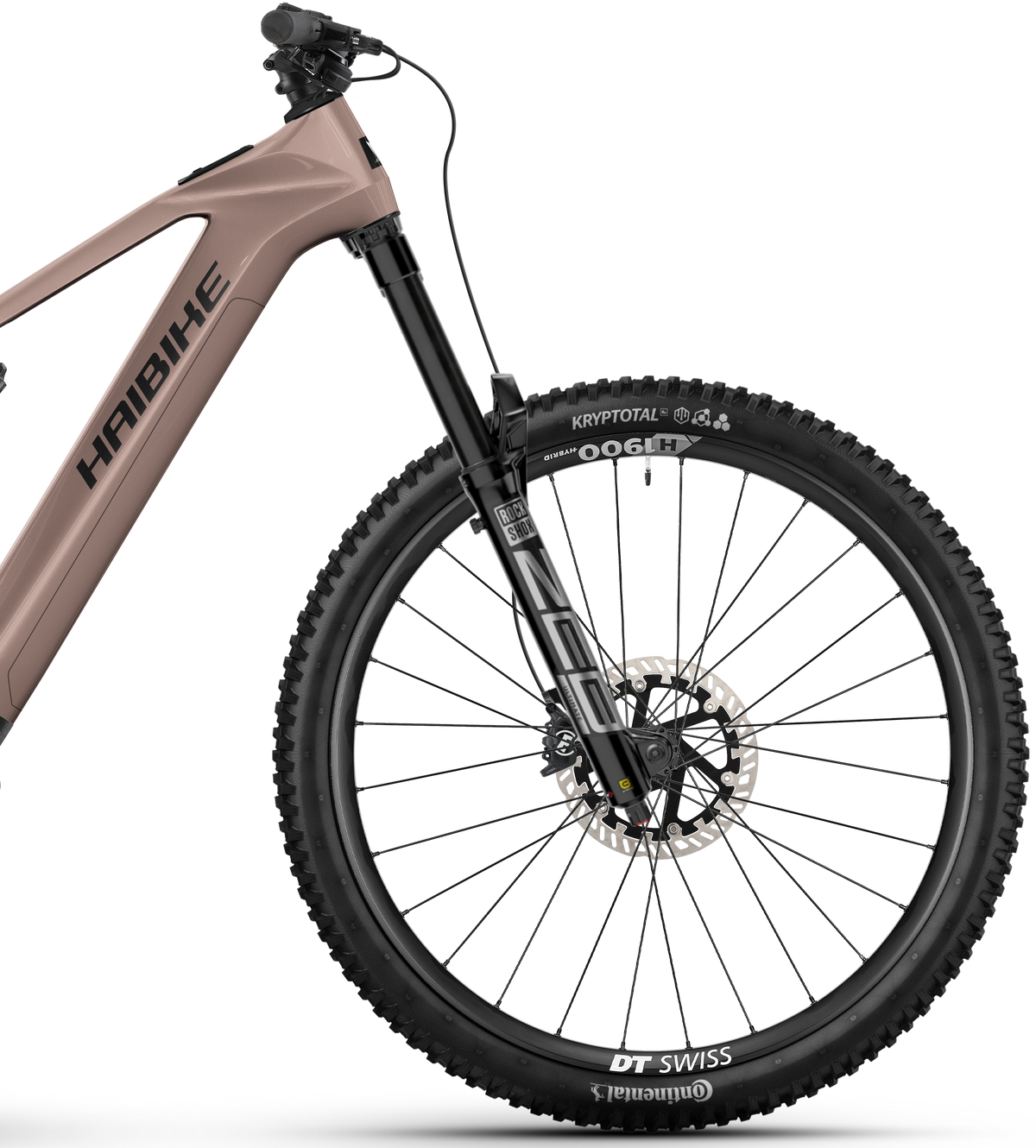

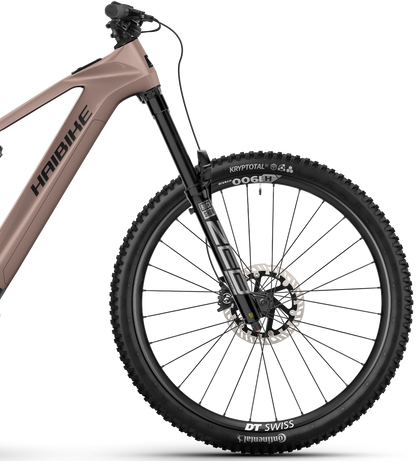

| Fork | RockShox ZEB Ultimate Charger 3.1 RC2, DebonAir, Offset: 44 mm, Travel: 160mm |
| Rear Shock | Rockshox Super Deluxe Ultimate RC2T 230x60mm DebonAir |
| Shifters | Pinion Smart Shift TE1 E-Trigger, Trigger shifter |
| Brakes | Magura MT5, 4 pistons |
| Crankset | Pinion Belt Drive Sprocket |
| Cassette | 32t |
| Chain | Gates Carbon Drive Belt CDX, 120T |
| Tyres | Continental Kryptotal-Fr, Enduro Soft, foldable skin SL, 60-622 |
| Handlebar | Haibike TheBar++ Dia. 31.8 mm 780 mm |
| Saddle | Selle Royal Vivo |
| Seatpost | Limotec A4H Dropper, Dia. 34.9 mm, Travel: 125 mm |
| Pedal | VP Components VPE-527 Alloy w/ Reflector |
| Wheel Size | 29 / 27.5 inch |
| Number of Gears | 12 |
| Motor | Pinion Motor-Gearbox-Unit, 12-speed |
| Battery | Pinion InTube 800Wh |
Ready to ride
Every bike from Start Fitness is fully checked & assembled before despatch and will arrive, almost, ready to ride. Each bike is assembled by one of our CyTech accredited mechanics and then packed into one of our custom boxes.
*This process has a lead time of 2-3 working days.
Unfortunately during peak times this may be slightly delayed. We will however, aim to despatch your bike as quickly as possible. Minimal assembly, with basic tools, is required before you can ride. Assembly tools are not usually included.
Making sure you are home
Once fully checked and boxed, we will contact you to arrange a suitable delivery date when you will be home to take delivery. Our bikes are despatched with a premium delivery service which usually delivers next working day (excludes weekends & bank holidays) for mainland UK orders, it may take slightly longer for some areas, Northern Ireland, Channel Islands and outlying Scottish areas. European bike deliveries usually take approximately one week.
Taking Delivery
Any mechanical or cosmetic issues need to be reported to us within one week of the delivery date. If you do not plan on using the bike straight away, we advise that you remove it from the box and check it over ASAP as we cannot be responsible for any reported issues (other than standard warranty issues) later than one week from the date that the bicycle was delivered.
First Service
After a few weeks of riding (we recommend around 6-8 weeks, regardless of how much the bike has been used), a new bike will need a service to make final adjustments and to re-check all nuts and bolts. This is necessary as the bike goes through a ‘bedding in’ phase, after which, final adjustment may be necessary. We recommend that this is carried out by a CyTech qualified mechanic.
It is important to have these checks carried out to prevent any avoidable problems which may not be covered by warranty and to ensure the smooth running of your bicycle. If you’re local to us, we’re able to offer this first service free of charge* at our Newcastle store (NE1 6JE). You’ll just need to call our workshop on 0191 917 3825 to book your service in, and don’t forget to bring your proof of purchase when you drop the bike off with us.
If you’ve had the bike delivered, it will be your responsibility to ensure a first service is carried out at a trusted bike shop local to you, preferably by a Cytech certified mechanic. Start Fitness are unfortunately not able to cover any costs associated with this service if carried out by another store.
*Please note that this complimentary check-over does not include any labour to replace worn parts or to fit new accessories. All bikes should be delivered to us in a clean and serviceable condition, or a £15 cleaning charge will be payable.
Bike Servicing
Bicycles need to be serviced regularly, as a guideline we would advise on at least one full service per year and/or a standard service twice a year. If the bike is used regularly in adverse conditions, more regular servicing may be required.
